Duolok 1/2 in. Tube Fitting Front Ferrules
Duolok 1/2 in. Tube Fitting Front Ferrules
SKU:SOU-69a87d
High-quality Duolok 1/2 in. Tube Fitting Front Ferrules for secure and leak-free connections in instrumentation tubes.
Regular price
$2.72
Regular price
Sale price
$2.72
Unit price
per
Initiate Order
Duolok 1/2 in. Tube Fitting Front Ferrules
$2.72
Quantity: 1
Claim Your Seller Account
Duolok 1/2 in. Tube Fitting Front Ferrules
$2.72
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 1/2 in. Tube Fitting Front Ferrules are constructed with high-quality 316 SS material, ensuring durability and reliability in demanding industrial environments. Designed as front ferrules, these fittings offer a secure connection for instrumentation tubes, providing a leak-free solution for fluid handling systems. The Duolok brand series guarantees precision engineering and compatibility with various systems. With a fitting size of 1/2 in., these front ferrules are ideal for applications requiring a robust and efficient tube fitting solution.

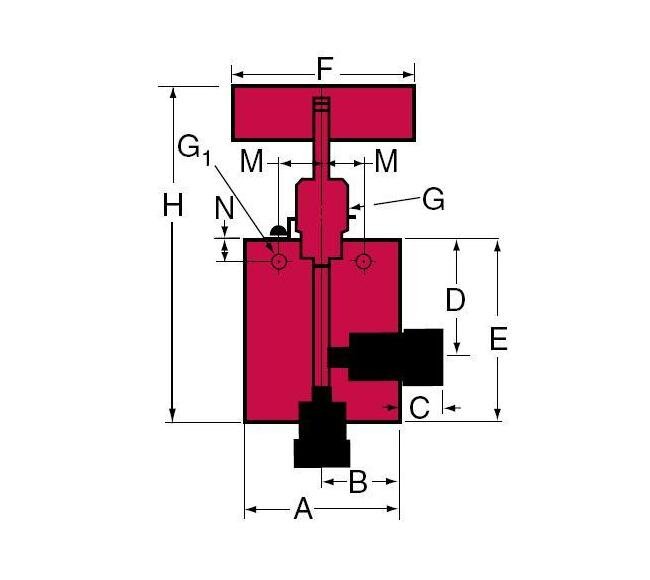

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
