Duolok 1/8 in. Tube Fitting Front Ferrules
Duolok 1/8 in. Tube Fitting Front Ferrules
SKU:SOU-660a66
Premium Duolok Tube Fitting Front Ferrules - Alloy C-276, 1/8 in. size, for secure and leak-tight tubing connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 1/8 in. Tube Fitting Front Ferrules
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 1/8 in. Tube Fitting Front Ferrules
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 1/8 in. Tube Fitting Front Ferrules are crafted from Alloy C-276, ensuring durability and corrosion resistance for long-lasting performance. Designed as Front Ferrules in the Duolok series, these fittings provide a secure connection for instrumentation tubing at 1/8 inch size. With precision engineering and a reliable seal, these front ferrules deliver exceptional leak-tight connections, ideal for a wide range of industrial applications.

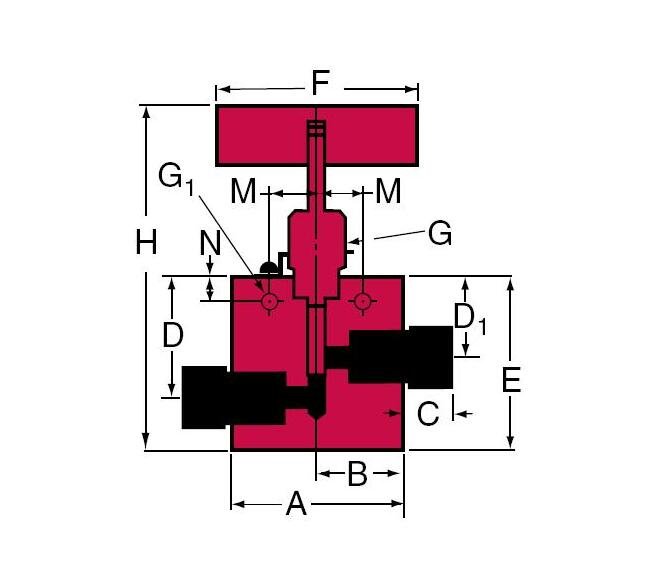

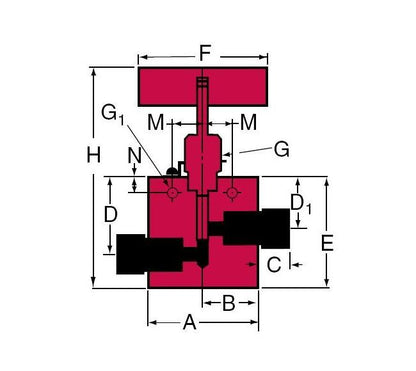

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.75 in | 45.45 mm
Specifications E Height
2.50 in | 63.50 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.13 in | 130.30 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.14
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
