Duolok 1 Inch Front Ferrule - Tube Fitting for Instrumentation
Duolok 1 Inch Front Ferrule - Tube Fitting for Instrumentation
SKU:SOU-63780b
Premium Duolok 1" Front Ferrule for secure, leak-free connections in instrumentation setups.
Regular price
$7.56
Regular price
Sale price
$7.56
Unit price
per
Initiate Order
Duolok 1 Inch Front Ferrule - Tube Fitting for Instrumentation
$7.56
Quantity: 1
Claim Your Seller Account
Duolok 1 Inch Front Ferrule - Tube Fitting for Instrumentation
$7.56
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 1 Inch Front Ferrule is a high-quality tube fitting essential for efficient instrumentation setups. Constructed from durable 316 stainless steel, this front ferrule ensures robust performance and longevity. With a fitting size of 1 inch and bearing the reputable Duolok brand series, it guarantees secure and leak-free connections. Ideal for various industrial applications, this front ferrule is designed to meet stringent standards, making it a reliable choice for precision instrumentation needs.

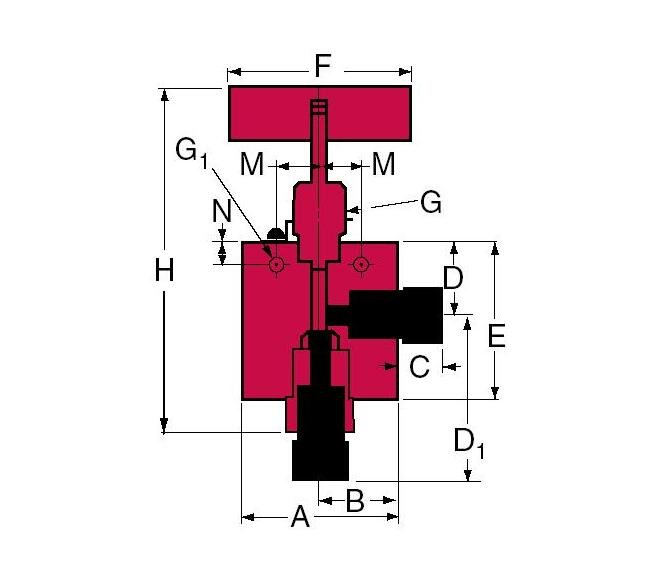

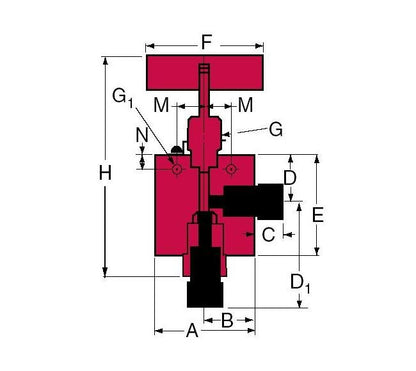

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
2.62 in | 66.55 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.45 in | 163.83 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
