Duolok 14mm Brass Front Ferrule Tube Fitting
Duolok 14mm Brass Front Ferrule Tube Fitting
SKU:HIG-b4dbaf
Premium Duolok 14mm Brass Front Ferrule for secure and durable tube connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 14mm Brass Front Ferrule Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 14mm Brass Front Ferrule Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 14mm Brass Front Ferrule Tube Fitting is a high-quality component designed for precision instrumentation tubing applications. Crafted from durable brass, this front ferrule ensures secure connections, optimal performance, and long-lasting reliability. With a fitting size of 14mm and bearing the trusted Duolok brand series, this product meets stringent industry standards for quality and functionality, making it ideal for both consumer and institutional buyers seeking top-tier tube fittings.
Product Specifications
Ae Relief Valves Features 0

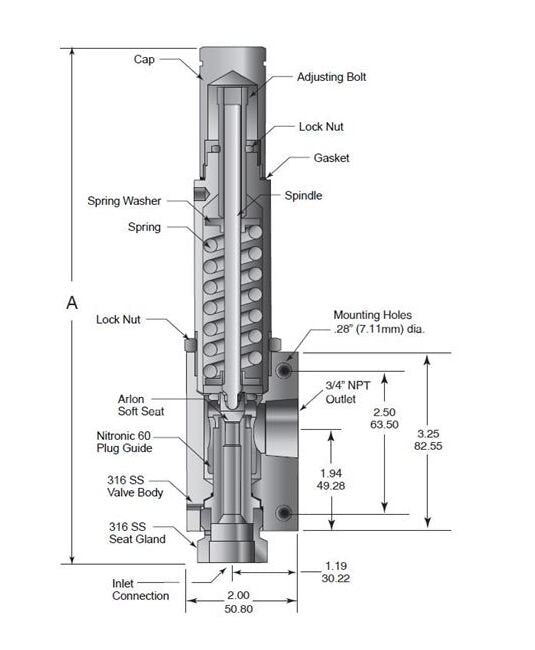

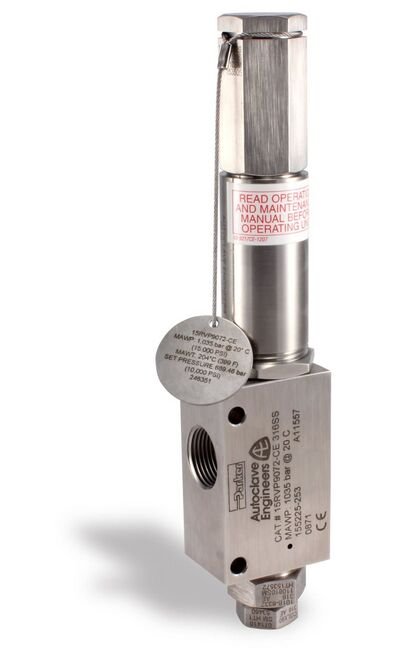

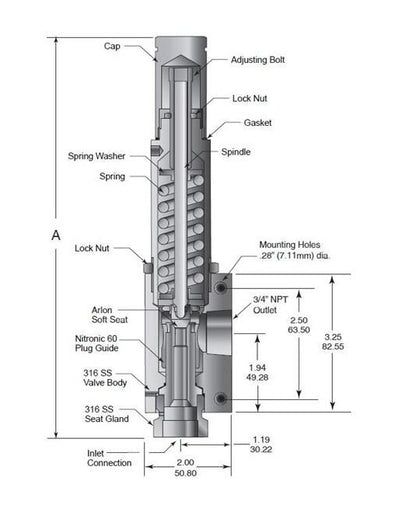

AE Relief Valves Features.Materials: Standard models of Relief Valves are constructed of 316 stainless steel with selected componentsmade of anti-galling stainless steel material for optimum economy and ruggedness.Connections: All models are designed with 9/16â Autoclave Medium Pressureinlet connections. The outlet connection on all models is a female 3/4â NPT. While adaptersto other sizes and connection types are available, they must be sized for specific flow requirements. SeeAdapter section.Orifice Sizes: Orifice diameters range from .062 (1.57mm) to .312â (7.92mm).Full Lift for Full Flow: These relief valves are designed to open as a function of increasing systempressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.Reliability and Long Service Life: Materials engineering and stringent quality control procedures combineto assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensureproper valve operation.High Set Pressure Capability: Unique seat construction plus over-the-nozzle guiding and proper selection ofmaterials permits standard set pressures to 75,000 psi. (5171 bar)Dependable Shut-off: Series RVS relief valves are designed to provide bubble tightshut off of gases.Fewer Parts, Ease of Maintenance: Engineered to perform with fewer basic components, both RVP andRVS valves facilitate minimum stocking of spare parts and ease of maintenance. The combined angle seat inthe RVP series eliminates the need for lapping in rework.Special Requirements: Most models available with CE Mark. SOG option available upon request.
Specifications A Height
9.40 in | 238.76 mm
Specifications Inlet Connection
SF562CX
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Outlet Connection Npt
3/4 in
Specifications Pressure Rating Psi Bar 100f 38c Maximum Back Pre
500 psi | 34.47 bar
Specifications Pressure Rating Psi Bar 100f 38c Maximum Setting
5000 psi | 344.73 bar
Specifications Pressure Rating Psi Bar 100f 38c Minimum Setting
1500 psi | 103.42 bar
Specifications Tubing Engagement Depth
0.81 in | 21.0 mm
