Duolok 15mm Front Ferrule Tube Fitting
Duolok 15mm Front Ferrule Tube Fitting
SKU:SOU-370531
Enhance tube connections with the Duolok 15mm Front Ferrule Tube Fitting. Precision-manufactured from 316 SS for durable and secure 15mm connections.
Regular price
$3.34
Regular price
Sale price
$3.34
Unit price
per
Initiate Order
Duolok 15mm Front Ferrule Tube Fitting
$3.34
Quantity: 1
Claim Your Seller Account
Duolok 15mm Front Ferrule Tube Fitting
$3.34
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 15mm Front Ferrule Tube Fitting is an essential component for high-quality instrumentation tube connections in diverse industries. Crafted from premium 316 SS material, this front ferrule guarantees durability and reliability. Its precise 15mm size, part of the Duolok brand series, ensures a secure and leak-free fit. Engineered to meet rigorous standards, this front ferrule is ideal for ensuring seamless connections in demanding environments.

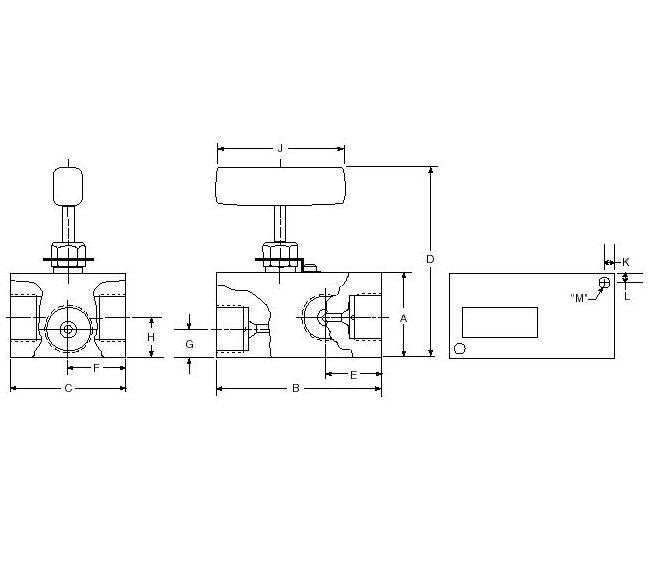

Product Specifications
Specifications A Height
2.00 in | 50.80 mm
Specifications B Length
3.88 in | 98.55 mm
Specifications Connection Size
9/16 in | 14.29 mm
Specifications Connection Type
F562C
Specifications C Width
2.75 in | 69.85 mm
Specifications D Height
4.75 in | 120.65 mm
Specifications E Length
1.31 in | 33.27 mm
Specifications F Length
1.38 in | 34.93 mm
Specifications G Height
0.66 in | 16.76 mm
Specifications H Height
0.94 in | 23.83 mm
Specifications J Length
3.00 in | 76.20 mm
Specifications K Mounting Dimension
0.38 in | 9.70 mm
Specifications L Mounting Dimension
0.38 in | 9.70 mm
Specifications M Mounting Diameter
0.28 in | 7.10 mm
Specifications Orifice Size
0.125 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
Wellhead Gauge Valve
