Duolok 16mm Front Ferrule Tube Fitting – Alloy 400
Duolok 16mm Front Ferrule Tube Fitting – Alloy 400
SKU:SOU-47c784
Enhance your system with the Duolok 16mm Front Ferrule Tube Fitting - Alloy 400 for secure, leak-free connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 16mm Front Ferrule Tube Fitting – Alloy 400
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 16mm Front Ferrule Tube Fitting – Alloy 400
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Duolok 16mm Front Ferrule Tube Fitting made from durable Alloy 400. This front ferrule ensures a secure and leak-free connection for 16mm tubing, ideal for instrumentation applications. The Duolok series guarantees precision engineering and ease of installation, meeting stringent industry standards for reliability and performance.

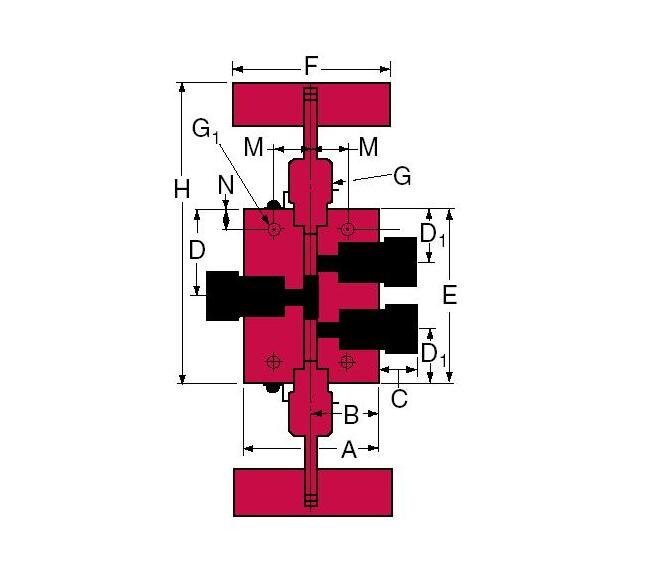

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.88 in | 47.75 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.37 in | 161.80 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
