Duolok 20mm Front Ferrule Tube Fitting
Duolok 20mm Front Ferrule Tube Fitting
SKU:HIG-c945f1
High-quality Duolok 20mm Front Ferrule Tube Fitting for secure instrumentation tube connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok 20mm Front Ferrule Tube Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Duolok 20mm Front Ferrule Tube Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 20mm Front Ferrule Tube Fitting is crafted from high-quality brass, ensuring durability and reliability in demanding industrial applications. Featuring a Front Ferrule type design, this fitting is specifically engineered for instrumentation tube systems. With a precise 20mm fitting size and part of the trusted Duolok brand series, this fitting guarantees a secure and leak-free connection. It complies with rigorous industry standards for optimal performance and longevity, making it an ideal choice for both consumer and institutional buyers.
Product Specifications

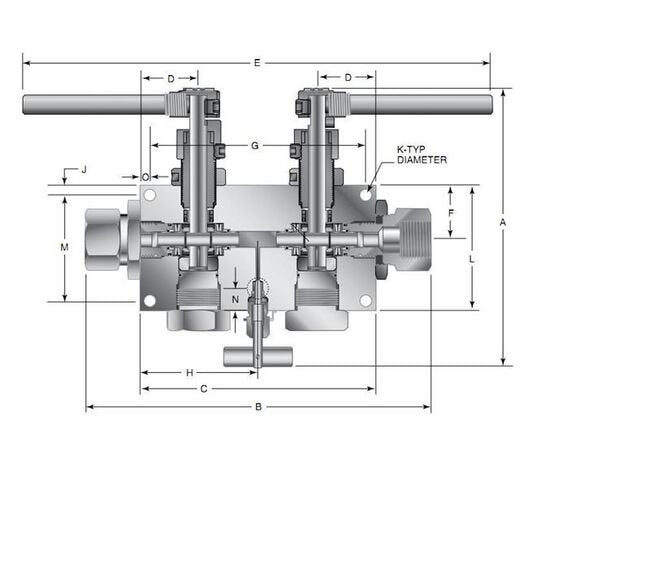

Specifications A Height
7.14 in | 181.36 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
8.81 in | 223.77 mm
Specifications Connection Type
SW500
Specifications C Width
6.00 in | 152.40 mm
Specifications D Length
1.5 in | 38.1 mm
Specifications End Connection Number
L8
Specifications E Length
12.94 in | 328.68 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
5.00 in | 127.00 mm
Specifications H Dimension
3 in | 76.20 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
3.19 in | 81.03 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.328 in | 8.33 mm
Specifications M Height
2.38 in | 60.45 mm
Specifications N Length
0.65 in | 16.51 mm
Specifications O Dimension
0.5 in | 12.70 mm
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Specifications Vent Connection
1/4 NPT
Specifications Vent Connection Number
P4
Valve Maintenance 0
Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
High Temperature Option:HT - for media temperature up to 500°F (260°C)See ball valve options/details for full description, connectiondetails and high temperature options.For material options consult factory.
