Duolok 22mm Brass Tube Fitting Front Ferrule
Duolok 22mm Brass Tube Fitting Front Ferrule
SKU:HIG-95603f
Enhance fluid systems with Duolok 22mm Brass Front Ferrule. Precision-designed for durability and secure connections. Compliant with federal standards and industry-certified.
Regular price
$5.45
Regular price
Sale price
$5.45
Unit price
per
Initiate Order
Duolok 22mm Brass Tube Fitting Front Ferrule
$5.45
Quantity: 1
Claim Your Seller Account
Duolok 22mm Brass Tube Fitting Front Ferrule
$5.45
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with the Duolok 22mm Brass Tube Fitting Front Ferrule. Crafted from high-quality brass, this front ferrule ensures a secure connection and reliable performance. Designed for instrumentation tube fittings, the Duolok series guarantees precision and durability in diverse applications. Compliant with federal procurement standards, GSA requirements, and industry certifications, this front ferrule is the optimal choice for institutional buyers seeking quality and reliability.

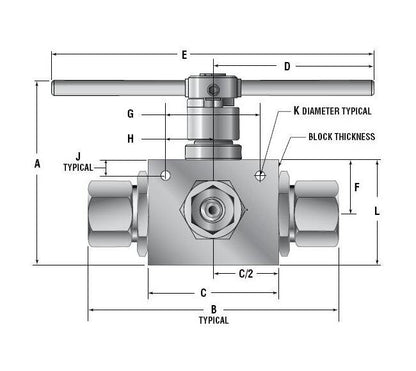

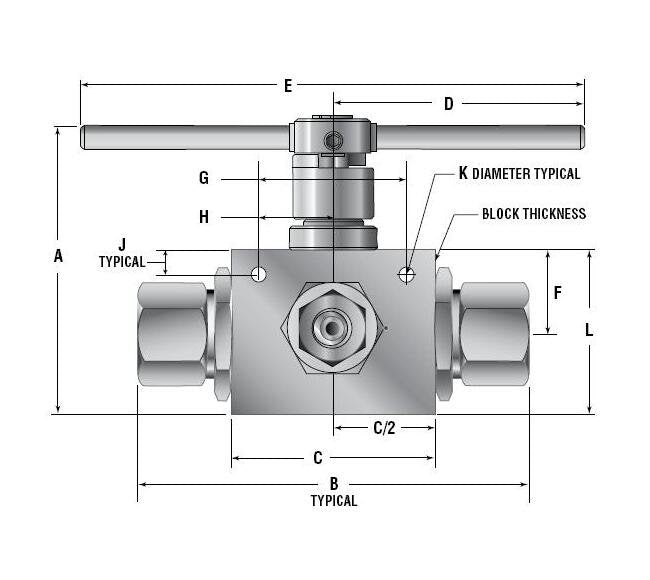

Product Specifications
Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
SF750CX20
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M12
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.375 in | 9.52 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
