Duolok 25mm Tube Fitting Front Ferrules
Duolok 25mm Tube Fitting Front Ferrules
SKU:HIG-f19b74
High-quality brass Duolok front ferrules for 25mm fittings, ensuring leak-free precision in critical environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok 25mm Tube Fitting Front Ferrules
$29.99
Quantity: 1
Claim Your Seller Account
Duolok 25mm Tube Fitting Front Ferrules
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with the Duolok 25mm Tube Fitting Front Ferrules. Crafted from high-quality brass, these front ferrules ensure leak-free connections in instrumentation applications. Designed for durability and precision, with a fitting size of 25mm and Duolok brand series, these ferrules guarantee reliable performance in critical environments. Compliant with federal procurement standards, these fittings meet the stringent requirements of government and institutional buyers, making them a trusted choice for industrial applications.

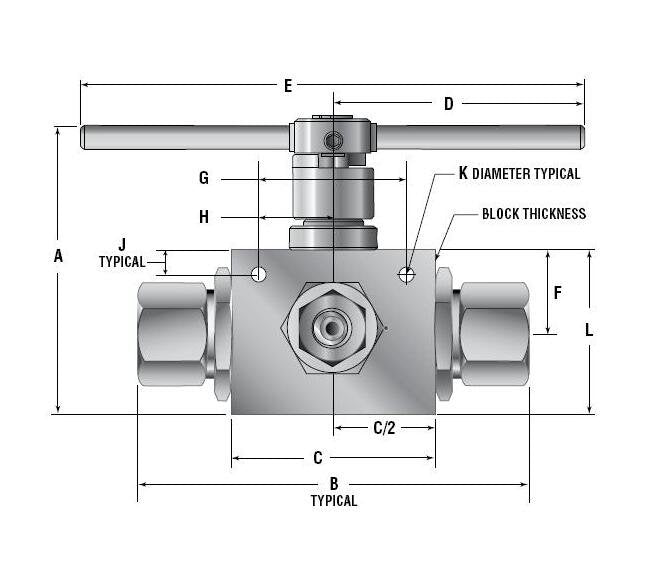

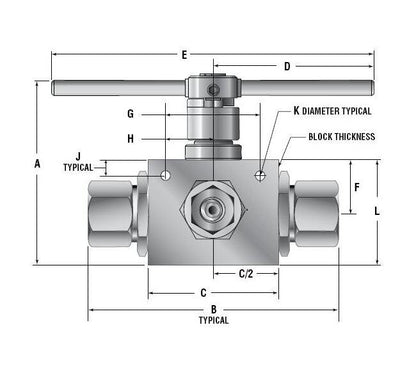

Product Specifications
Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
SF750CX20
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M12
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.375 in | 9.52 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
