Duolok 28mm Tube Fitting Front Ferrules
Duolok 28mm Tube Fitting Front Ferrules
SKU:SOU-450bc5
Premium 28mm Duolok Front Ferrules for secure, leak-free tubing connections. Crafted from 316 SS, ideal for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 28mm Tube Fitting Front Ferrules
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 28mm Tube Fitting Front Ferrules
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 28mm Tube Fitting Front Ferrules are precision-engineered from high-grade 316 stainless steel to ensure durability and leak-free performance. Designed as Front Ferrules, they provide a secure connection for instrumentation tubing applications. With the renowned Duolok brand series, these ferrules guarantee superior quality and reliability, ideal for demanding industrial environments. Compliant with stringent industry standards, these front ferrules offer exceptional resistance to corrosion and high pressure, making them a trusted choice for both consumer and institutional users seeking top-tier tube fitting solutions.

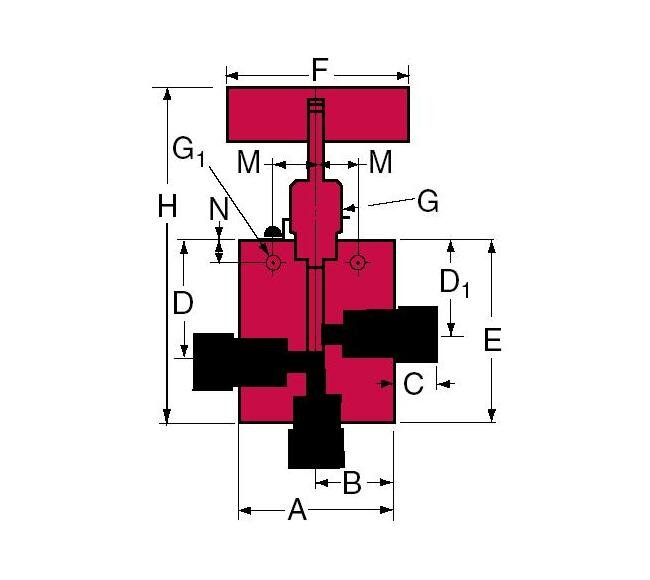

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.56 in | 39.62 mm
Specifications E Height
2.88 in | 73.15 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.49 in | 139.45 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
