Duolok 316 SS Front Ferrule, 1 1/2 in. Tube Fitting
Duolok 316 SS Front Ferrule, 1 1/2 in. Tube Fitting
SKU:SOU-75263c
Enhance your tubing system with Duolok 316 SS Front Ferrule, 1 1/2 in. for secure, leak-free connections in instrumentation applications.
Regular price
$28.95
Regular price
Sale price
$28.95
Unit price
per
Initiate Order
Duolok 316 SS Front Ferrule, 1 1/2 in. Tube Fitting
$28.95
Quantity: 1
Claim Your Seller Account
Duolok 316 SS Front Ferrule, 1 1/2 in. Tube Fitting
$28.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing system with the premium Duolok 316 SS Front Ferrule designed for secure and leak-free connections. With a fitting size of 1 1/2 inches, this front ferrule from the Duolok series ensures durable performance. Crafted from high-quality 316 stainless steel, it meets rigorous industry standards for corrosion resistance and longevity. Ideal for instrumentation applications, this front ferrule guarantees precise and reliable tube fittings.

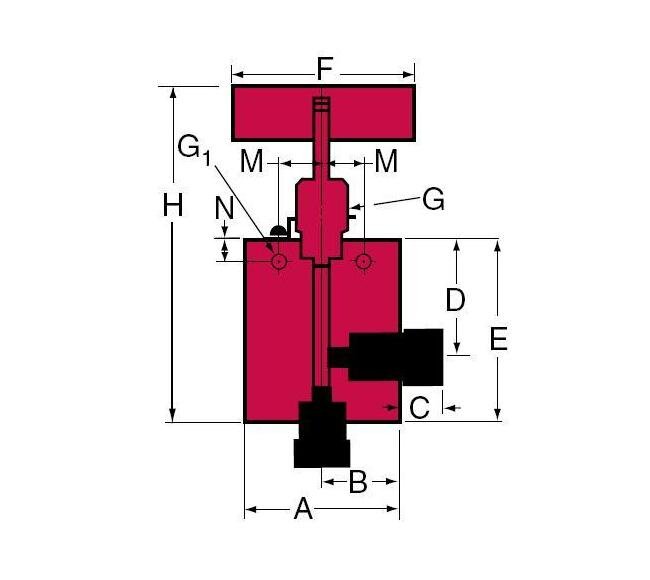

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.62 in | 117.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
