Duolok 316 SS Front Ferrule - 25mm, Tube Fitting
Duolok 316 SS Front Ferrule - 25mm, Tube Fitting
SKU:SOU-b7265b
Premium Duolok 316 SS Front Ferrule - Ensures leak-tight connections in 25mm instrumentation fittings. Compliant with industry standards.
Regular price
$7.56
Regular price
Sale price
$7.56
Unit price
per
Initiate Order
Duolok 316 SS Front Ferrule - 25mm, Tube Fitting
$7.56
Quantity: 1
Claim Your Seller Account
Duolok 316 SS Front Ferrule - 25mm, Tube Fitting
$7.56
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 316 SS Front Ferrule is a premium quality tube fitting essential for instrumentation applications. Made from durable 316 stainless steel, this front ferrule ensures reliable performance and leak-tight connections. Designed for 25mm fittings under the renowned Duolok brand series, it guarantees precision and durability in demanding environments. Compliant with industry standards, this front ferrule is a top choice for institutions seeking quality, reliability, and performance.

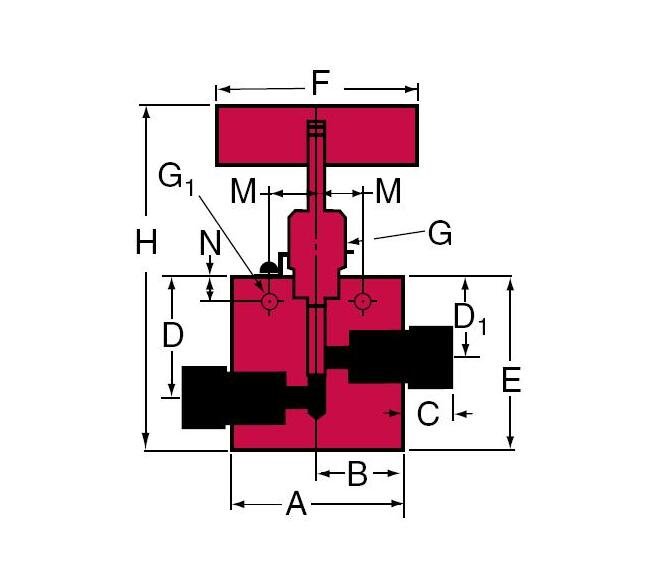

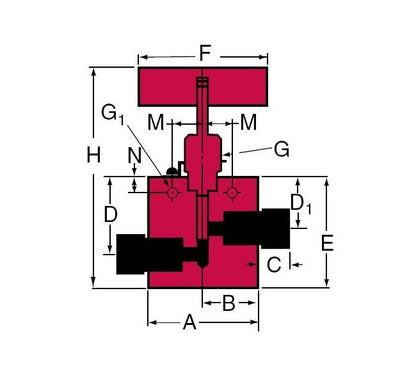

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.56 in | 39.62 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
