Duolok 316 SS Front Ferrule, 3mm Instrumentation Tube Fitting
Duolok 316 SS Front Ferrule, 3mm Instrumentation Tube Fitting
SKU:SOU-050909
Enhance your tubing systems with Duolok 316 SS Front Ferrule for secure, leak-free connections. 3mm size, corrosion-resistant.
Regular price
$1.92
Regular price
Sale price
$1.92
Unit price
per
Initiate Order
Duolok 316 SS Front Ferrule, 3mm Instrumentation Tube Fitting
$1.92
Quantity: 1
Claim Your Seller Account
Duolok 316 SS Front Ferrule, 3mm Instrumentation Tube Fitting
$1.92
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial tubing systems with the Duolok 316 SS Front Ferrule, designed for secure connections in instrumentation applications. Crafted from high-grade 316 stainless steel, this front ferrule ensures reliable performance and corrosion resistance. With a precise fitting size of 3mm and Duolok brand series, it guarantees a tight seal and leak-free operation, meeting stringent industry standards for quality and durability.

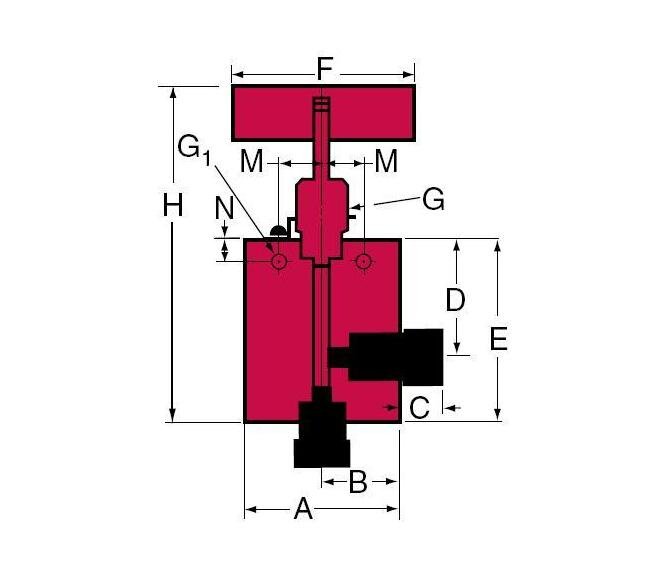

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.00 in | 127.00 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.08
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
