Duolok 3mm Brass Tube Fitting Front Ferrules
Duolok 3mm Brass Tube Fitting Front Ferrules
SKU:SOU-1a814e
Enhance your fluid systems with precision using Duolok 3mm Brass Tube Fitting Front Ferrules. Crafted with high-quality brass for secure connections in instrumentation tube fittings.
Regular price
$0.78
Regular price
Sale price
$0.78
Unit price
per
Initiate Order
Duolok 3mm Brass Tube Fitting Front Ferrules
$0.78
Quantity: 1
Claim Your Seller Account
Duolok 3mm Brass Tube Fitting Front Ferrules
$0.78
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with precision using the Duolok 3mm Brass Tube Fitting Front Ferrules. Crafted with high-quality brass, these front ferrules ensure secure connections in instrumentation tube fittings. Designed as part of the Duolok series, they guarantee reliability and durability. Ideal for a wide range of applications, these front ferrules are a must-have for industries requiring top-tier tube fitting solutions.

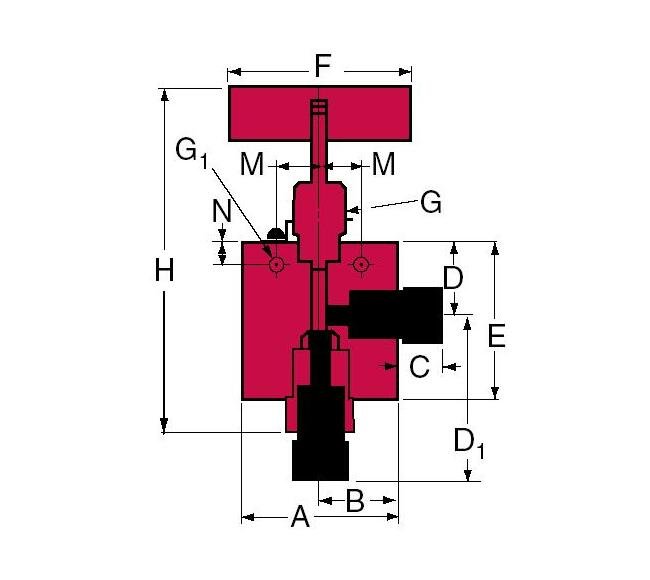

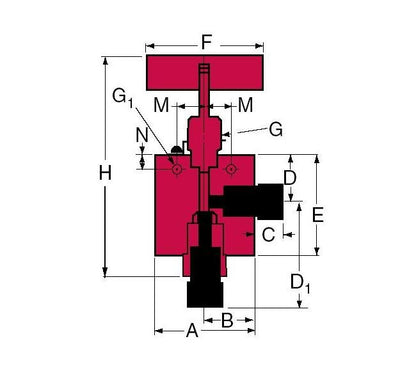

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
2.06 in | 52.32 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.8 in | 147.32 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
