Duolok 45 Degree Male Elbow - 316 SS, 1/4 TF x 1/4-18 MNPT
Duolok 45 Degree Male Elbow - 316 SS, 1/4 TF x 1/4-18 MNPT
SKU:130-8b6598
Secure and leak-free Duolok 45° Male Elbow - 316 SS fitting for 1/4 TF x 1/4-18 MNPT connections. Ensure precision and durability.
Regular price
$28.74
Regular price
Sale price
$28.74
Unit price
per
Initiate Order
Duolok 45 Degree Male Elbow - 316 SS, 1/4 TF x 1/4-18 MNPT
$28.74
Quantity: 1
Claim Your Seller Account
Duolok 45 Degree Male Elbow - 316 SS, 1/4 TF x 1/4-18 MNPT
$28.74
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing connections with the Duolok 45° Male Elbow, constructed from premium 316 stainless steel. This elbow fitting ensures a secure, leak-free connection between 1/4-inch tube fittings and 1/4-18 MNPT threads. With precise dimensions meeting industry standards, this Duolok fitting offers durability, easy installation, and optimal flow control. Trust in reliability and performance for your instrumentation needs.
Product Specifications
Additional Information Additional Information

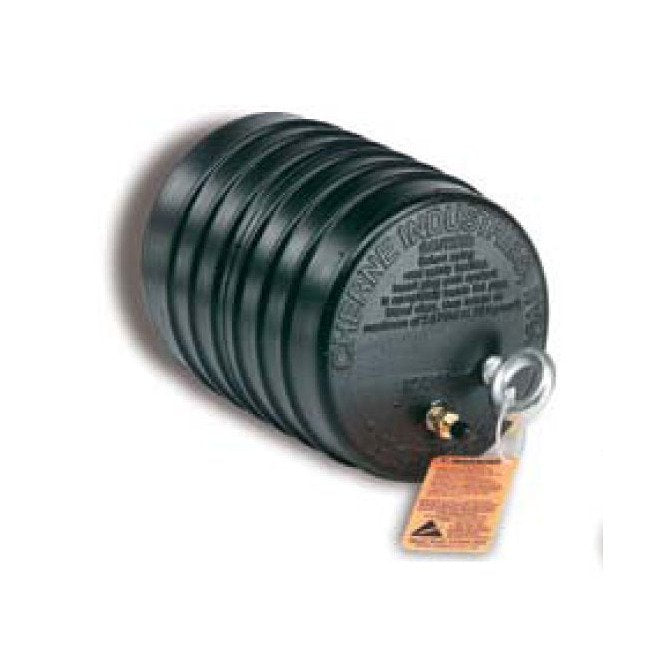

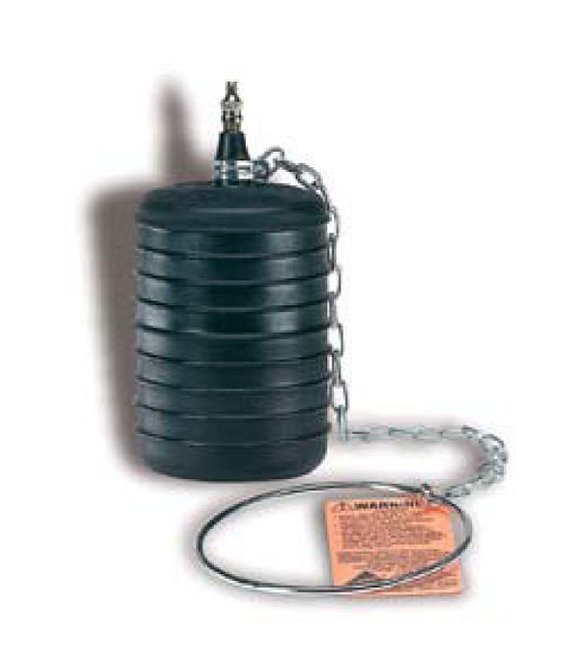

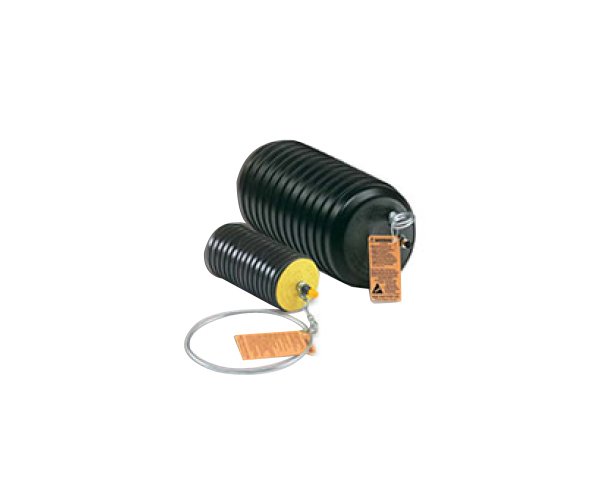

Multi-Size Test PlugsBased on the single-size test plug design, one multi-size test plug works in up to three different pipe sizes - saving time, money, and shelf/truck space. Easily fits closet bends, sanitary tees, and floor drains. These plugs are ideal for both blocking sewer flow and for use as a back plug in low-pressure air tests. Both the single and multi-size test plugs are made from long-lasting natural rubber with a molded rib design. These plugs are durable, tear-resistant, and works on any type of pipe, including out-of-round pipe. Always block plugs when conducting air tests.
Inflatable Plug Warning 0
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Sewer Applications 0
Equipped with a removable tire inflation valve and has an eye bolt for plug installation and removal.
Specifications Air Pressure
11 psi | 0.75 bar
Specifications Deflated Diameter
10.5 in | 267 mm
Specifications Deflated Length
24 in | 610 mm
Specifications Head Pressure
25 ft | 8 m
Specifications Maximum Pipe Diameter
18.25 in | 464 mm
Specifications Minimum Pipe Diameter
10.75 in | 273 mm
Specifications Nominal Size
12 to 18 in | 300 to 450 mm
Specifications Required Inflation
25 psig
Specifications Shipping Weight
23 lb
Specifications Valve Type
1/4 in
