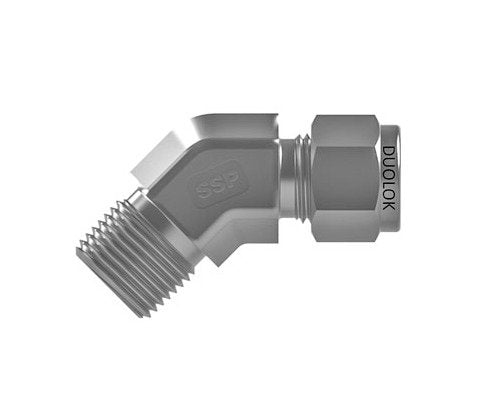

Duolok 45-Degree Male Elbow - 316 SS, 3/8 Tube x 1/4-18 MNPT
Duolok 45-Degree Male Elbow - 316 SS, 3/8 Tube x 1/4-18 MNPT
SKU:FIT-af790a
High-quality Duolok 45-Degree Male Elbow - 316 SS, 3/8 Tube x 1/4-18 MNPT for secure instrumentation connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Duolok 45-Degree Male Elbow is a precision-engineered fitting designed for seamless connection in instrumentation applications. Constructed from high-quality 316 stainless steel, this elbow ensures durability and corrosion resistance. With a 3/8-inch tube fitting at one end and a 1/4-18 MNPT connection at the other, it offers a secure and leak-free joint. The compact design, along with precise dimensions and compliance with industry standards, makes it ideal for a range of institutional and government procurement needs.
Product Specifications
Dimensions A
1.10 in
Dimensions Bx
0.81 in
Dimensions By
0.90 in
Dimensions C
0.76 in
Dimensions D
0.66 in
Dimensions E
0.28 in
Dimensions F Minimum
0.56 in
Dimensions G
11/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
3/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications By Num
0.90 in
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications D Num
0.66 in
Specifications End Connections
TF x MNPT
Specifications E Num
0.28 in
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Specifications T Num
3/8 in
Category 6
Tube Fitting to NPT Thread Fitting - Duolok
