Duolok 45 Degree Male Elbow - Brass, 1/2 Tube x 3/8-18 MNPT
Duolok 45 Degree Male Elbow - Brass, 1/2 Tube x 3/8-18 MNPT
SKU:130-c09fe0
Durable Duolok 45° Male Elbow in Brass, 1/2 Tube x 3/8-18 MNPT. Reliable, leak-free connections for fluid systems.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 45 Degree Male Elbow - Brass, 1/2 Tube x 3/8-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 45 Degree Male Elbow - Brass, 1/2 Tube x 3/8-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 45 Degree Male Elbow in Brass is a premium instrumentation tube fitting designed for optimal performance and durability. Featuring a 1/2-inch Tube Fitting on one end and a 3/8-18 MNPT connection on the other, this elbow ensures secure and leak-free connections. With precise dimensions meeting industry standards and a compact design, it is ideal for a wide range of applications in fluid systems. The Duolok fittings guarantee ease of installation and maintenance, making them a reliable choice for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information

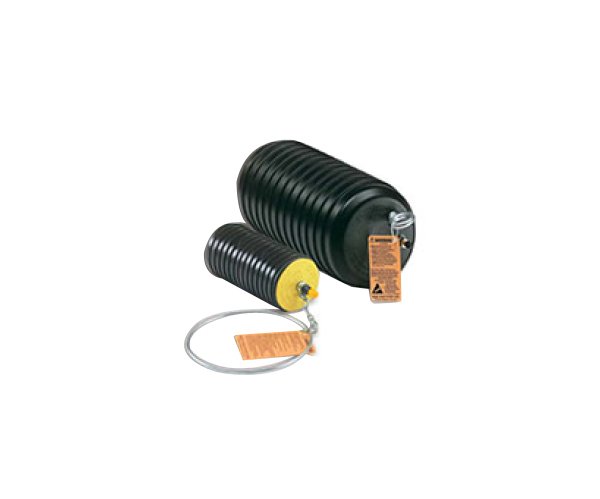

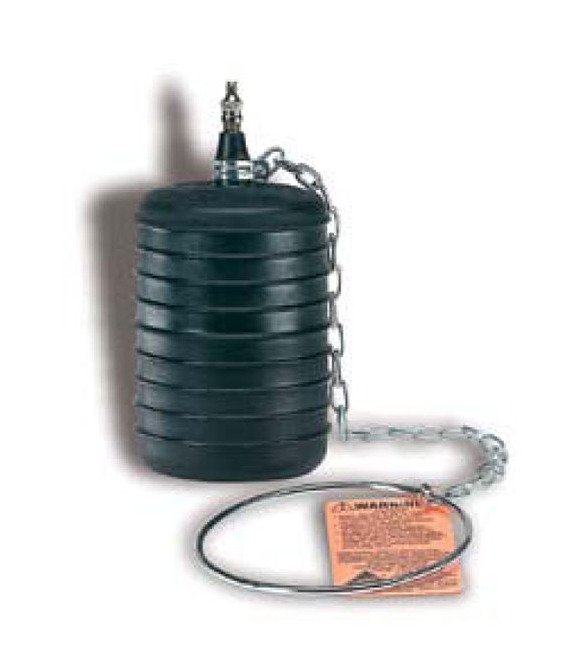

Multi-Size Test PlugsBased on the single-size test plug design, one multi-size test plug works in up to three different pipe sizes - saving time, money, and shelf/truck space. Easily fits closet bends, sanitary tees, and floor drains. These plugs are ideal for both blocking sewer flow and for use as a back plug in low-pressure air tests. Both the single and multi-size test plugs are made from long-lasting natural rubber with a molded rib design. These plugs are durable, tear-resistant, and works on any type of pipe, including out-of-round pipe. Always block plugs when conducting air tests.
Inflatable Plug Warning 0
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Sewer Applications 0

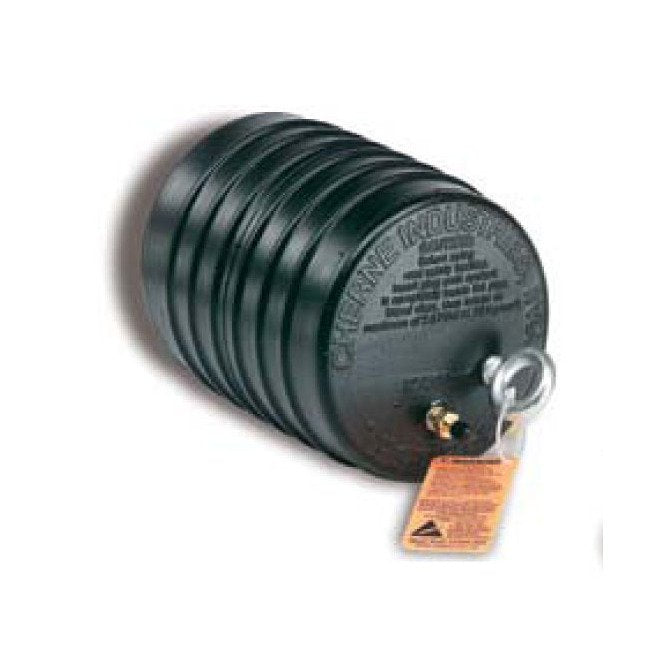

Equipped with a removable tire inflation valve and has an eye bolt for plug installation and removal.
Specifications Air Pressure
13 psi | 0.9 bar
Specifications Deflated Diameter
10.75 in | 273 mm
Specifications Deflated Length
39.5 in | 1003 mm
Specifications Head Pressure
30 ft | 9.1 m
Specifications Maximum Pipe Diameter
24.25 in | 616 mm
Specifications Minimum Pipe Diameter
11 in | 275 mm
Specifications Nominal Size
12 to 24 in | 300 to 600 mm
Specifications Required Inflation
30 psig
Specifications Shipping Weight
28 lb
Specifications Valve Type
1/4 in
