Duolok 45 Degree Male Elbow Fitting - Brass, 1/4 Tube x 1/4 MNPT
Duolok 45 Degree Male Elbow Fitting - Brass, 1/4 Tube x 1/4 MNPT
SKU:130-04577f
Duolok 45 Degree Male Elbow - Brass, 1/4 Tube x 1/4 MNPT, precision-engineered for secure connections in instrumentation tube installations.
Regular price
$12.34
Regular price
Sale price
$12.34
Unit price
per
Initiate Order
Duolok 45 Degree Male Elbow Fitting - Brass, 1/4 Tube x 1/4 MNPT
$12.34
Quantity: 1
Claim Your Seller Account
Duolok 45 Degree Male Elbow Fitting - Brass, 1/4 Tube x 1/4 MNPT
$12.34
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 45 Degree Male Elbow Fitting is a precision-engineered brass fitting that ensures secure connections. This fitting boasts a 1/4 inch tube size and 1/4-18 MNPT connection for seamless compatibility. With dimensions meeting industry standards such as TAA and NIST, this elbow fitting is ideal for instrumentation tube applications requiring reliability and durability.
Product Specifications
Additional Information Additional Information

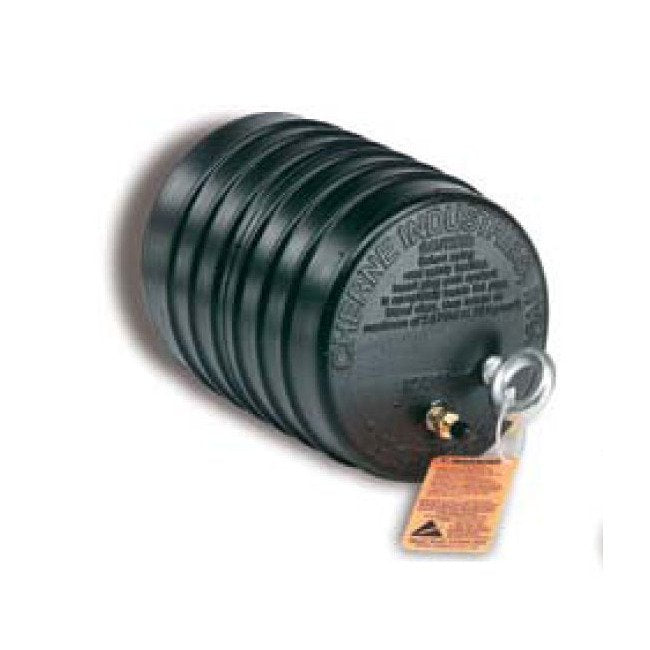

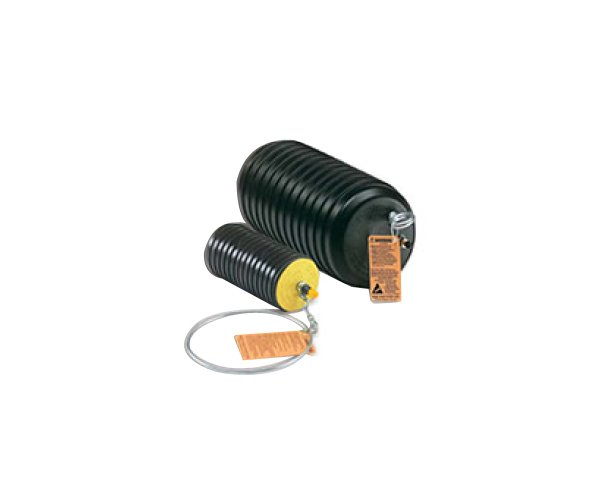

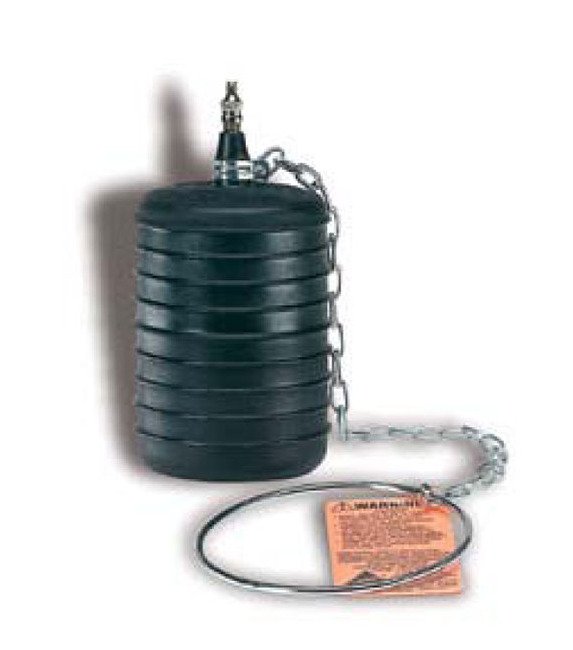

Multi-Size Test PlugsBased on the single-size test plug design, one multi-size test plug works in up to three different pipe sizes - saving time, money, and shelf/truck space. Easily fits closet bends, sanitary tees, and floor drains. These plugs are ideal for both blocking sewer flow and for use as a back plug in low-pressure air tests. Both the single and multi-size test plugs are made from long-lasting natural rubber with a molded rib design. These plugs are durable, tear-resistant, and works on any type of pipe, including out-of-round pipe. Always block plugs when conducting air tests.
Inflatable Plug Warning 0
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Sewer Applications 0
Equipped with a removable tire inflation valve and has an eye bolt for plug installation and removal.
Specifications Air Pressure
13 psi | 0.9 bar
Specifications Deflated Diameter
7.25 in | 184 mm
Specifications Deflated Length
29.5 in | 750 mm
Specifications Head Pressure
30 ft | 9.1 m
Specifications Maximum Pipe Diameter
16.25 in | 413 mm
Specifications Minimum Pipe Diameter
7.5 in | 186 mm
Specifications Nominal Size
8 to 16 in | 200 to 400 mm
Specifications Required Inflation
30 psig
Specifications Shipping Weight
15 lb
Specifications Valve Type
1/4 in
