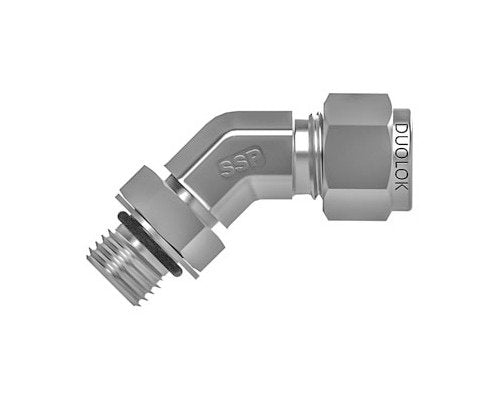

Duolok 45-Degree Positionable Male Elbow 1/4" TF x 7/16-20 Male SAE
Duolok 45-Degree Positionable Male Elbow 1/4" TF x 7/16-20 Male SAE
SKU:FIT-aa23a1
Duolok 45-Deg Male Elbow, 316 SS, TF x Male SAE, Leak-Free, Precision Fit
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok 45-Degree Positionable Male Elbow 1/4" TF x 7/16-20 Male SAE
$29.99
Quantity: 1
Claim Your Seller Account
Duolok 45-Degree Positionable Male Elbow 1/4" TF x 7/16-20 Male SAE
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 45-Degree Positionable Male Elbow is precision-engineered from high-quality 316 SS, ensuring durability and corrosion resistance. This fitting features a 1/4-inch Tube Fitting connection on one end and a 7/16-20 Male SAE connection on the other, offering seamless compatibility and secure performance. With precise dimensions and a reliable AS568 O-Ring, this elbow provides a leak-free solution for instrumentation tubing systems. Trust Duolok for exceptional quality and performance in your industrial applications.
Product Specifications
Dimensions A
1.01 in
Dimensions As568 O Ring Uniform Size Number
-904
Dimensions Bx
0.72 in
Dimensions By
1.01 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
1/2 in
Dimensions Hx
9/16 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Category 6
Tube Fitting to SAE Thread Fitting - Duolok
