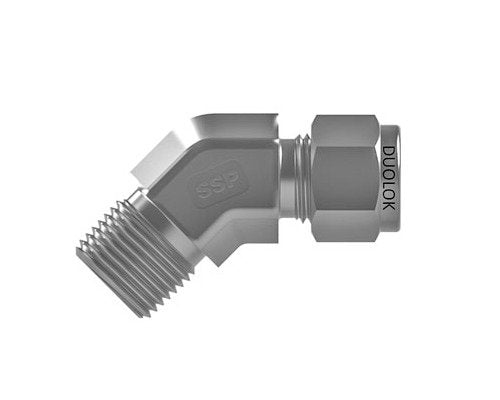

Duolok 45° Male Elbow - 316 SS, 1/4 Tube x 1/4-18 MNPT
Duolok 45° Male Elbow - 316 SS, 1/4 Tube x 1/4-18 MNPT
SKU:FIT-5093f2
Premium Duolok 45° Male Elbow - 316 SS, 1/4 Tube x 1/4-18 MNPT for precise instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 45° Male Elbow - 316 SS, 1/4 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 45° Male Elbow - 316 SS, 1/4 Tube x 1/4-18 MNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 45° Male Elbow is crafted from high-grade 316 SS, ensuring durability and corrosion resistance. This fitting features a 1/4 inch Tube Fitting x 1/4-18 MNPT connection setup, ideal for precise instrumentation applications. With precise dimensions meeting industry standards, it offers reliable performance and easy installation.
Product Specifications
Dimensions A
0.97 in
Dimensions Bx
0.68 in
Dimensions By
0.83 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions F Minimum
0.56 in
Dimensions G
9/16 in
Dimensions H
9/16 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications By Num
0.83 in
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications D Num
0.60 in
Specifications End Connections
TF x MNPT
Specifications E Num
0.19 in
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Elbow
Specifications T Num
1/4 in
Category 6
Tube Fitting to NPT Thread Fitting - Duolok
