Duolok 45° Positionable Male Elbow - 316 SS, 1/4 Tube x 7/16-20 SAE
Duolok 45° Positionable Male Elbow - 316 SS, 1/4 Tube x 7/16-20 SAE
SKU:130-9df8c7
High-quality Duolok 45° Positionable Male Elbow for precise tube connections, 316 SS construction.
Regular price
$36.35
Regular price
Sale price
$36.35
Unit price
per
Initiate Order
Duolok 45° Positionable Male Elbow - 316 SS, 1/4 Tube x 7/16-20 SAE
$36.35
Quantity: 1
Claim Your Seller Account
Duolok 45° Positionable Male Elbow - 316 SS, 1/4 Tube x 7/16-20 SAE
$36.35
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 45° Positionable Male Elbow is crafted from high-quality 316 SS, ensuring durability and corrosion resistance. With a 1/4-inch Tube Fitting on one end and a 7/16-20 Male SAE on the other, this elbow offers secure connections. Its innovative design allows for easy positioning, enhancing installation flexibility. Perfect for instrumentation applications requiring precision and reliability.
Product Specifications
Features Features

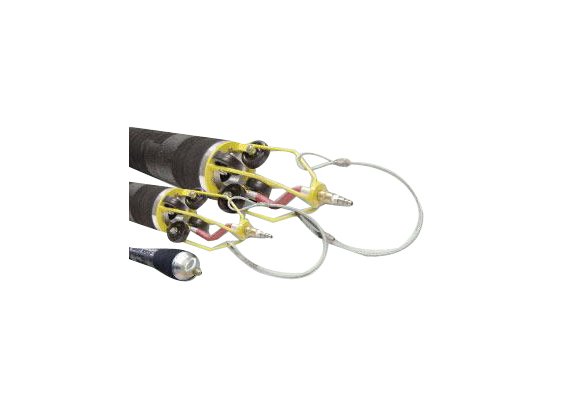

Made of aramid corded natural rubber: extremely durable and flexibleFlexible: All units can fold in half for transport1/4" NPT Inflation Port with male quick disconnect for ease of connectionIntegrated cage/wheel assembly for ease of movement down the pipeBypass design allows sewage bypass during repairUnique centered inflation port for use with push rod inflation polesWire harness keeps unit centered in pipe2" FPT bypass allows for continuous sewer flow
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Made by Cherne
Specifications Approximate Contact Length
108 in
Specifications Deflated Diameter
5.80 in
Specifications Diameter
8 to 12 in
Specifications Inflation Pressure
25 psi | 1.7 bar
Specifications Length
10 ft
Specifications Maximum Pipe Diameter
12.25 in
Specifications Shipping Weight
45 lb
