Duolok 5/8 in. Tube Fitting Front Ferrules

Duolok 5/8 in. Tube Fitting Front Ferrules

SOU-047461

Premium Duolok tube fitting front ferrules for 5/8 in. tubing, crafted from corrosion-resistant 316 SS material.

$3.15
$3.15
Sale

Initiate Order

Duolok 5/8 in. Tube Fitting Front Ferrules

Duolok 5/8 in. Tube Fitting Front Ferrules

$3.15

Quantity: 1

Claim Your Seller Account

Duolok 5/8 in. Tube Fitting Front Ferrules

Duolok 5/8 in. Tube Fitting Front Ferrules

$3.15

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Duolok 5/8 in. Tube Fitting Front Ferrules are precision-engineered with 316 SS material, ensuring durability and corrosion resistance. Designed as front ferrules, these fittings provide a secure connection for 5/8 in. tubing, part of the Duolok Tube Fittings series by SSP Corp. Ideal for instrumentation applications, these front ferrules offer reliable performance and easy installation.

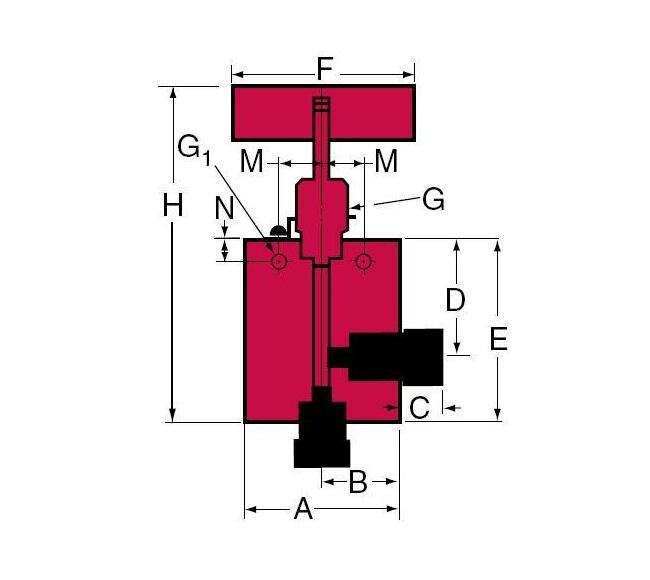

Product Specifications

Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
