Duolok 6mm Alloy 400 Front Ferrule Tube Fitting
Duolok 6mm Alloy 400 Front Ferrule Tube Fitting
SKU:SOU-b0be4c
High-quality Duolok 6mm Alloy 400 front ferrule for secure instrumentation tube connections.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Duolok 6mm Alloy 400 Front Ferrule Tube Fitting
$15.99
Quantity: 1
Claim Your Seller Account
Duolok 6mm Alloy 400 Front Ferrule Tube Fitting
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 6mm Alloy 400 Front Ferrule Tube Fitting is designed for precise tube connections in instrumentation applications. Crafted from high-quality Alloy 400, this front ferrule ensures a secure and leak-free fit for 6mm tubing. The Duolok brand series guarantees reliability and durability, making it ideal for industrial and institutional use.

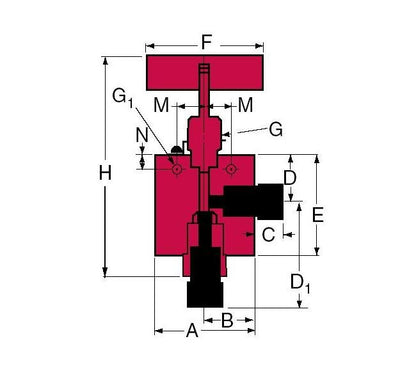

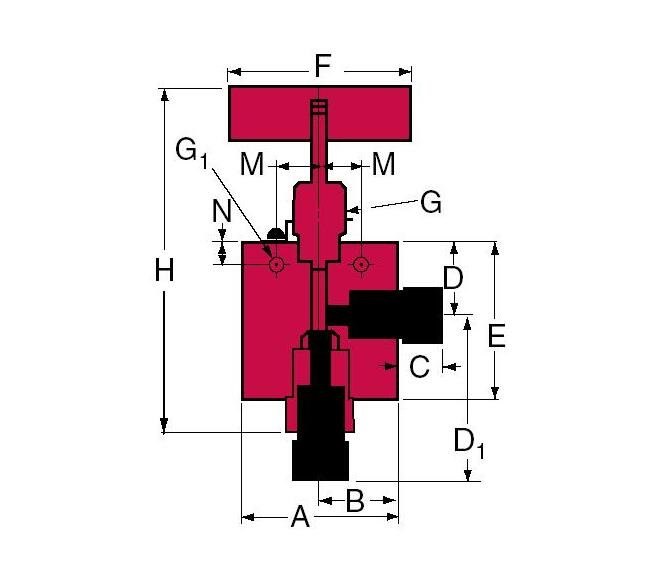

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
2.68 in | 68.07 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.81 in | 71.37 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.90 in | 175.26 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.14
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
