Duolok 90-Degree Male Elbow SAE Fitting - Alloy 400
Duolok 90-Degree Male Elbow SAE Fitting - Alloy 400
SKU:MUL-3846e6
Premium Duolok 90-Degree Male Elbow SAE Fitting for reliable instrumentation tube connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Duolok 90-Degree Male Elbow SAE Fitting - Alloy 400
$39.99
Quantity: 1
Claim Your Seller Account
Duolok 90-Degree Male Elbow SAE Fitting - Alloy 400
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 90-Degree Male Elbow SAE Fitting is a precision-engineered tube fitting designed for seamless integration in instrumentation systems. Made from Alloy 400, this fitting ensures exceptional durability and corrosion resistance. Its 5/16-inch tube fitting paired with a 1/2-20 Male SAE connection offers secure and leak-free performance. With precise dimensions and a high-quality build, this Duolok fitting guarantees reliable operation in a variety of industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Air And Hot Water Or Steam Air And Hot Water Or Steam

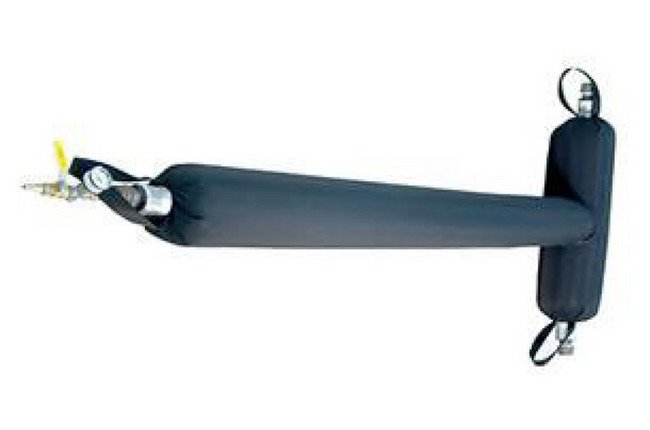

Packers can be fitted with connections for use with circulating hot water, steam or ambient cure with air or water.
Easy Installation And Removal Easy Installation And Removal
Small deflated diameter, light weight, and flexibility allow installation of long Multi-Flex⢠Packers through a small opening. Removal after deflating is just as easy.
Flow Thru Flow Thru
The by-pass design allows flow through the Multi-Flex⢠Packer during repairs.
High Strength Flexible Materials High Strength Flexible Material
Inflatable Multi-Flex⢠Packers are made from very high strength Nylon reinforced EPDM. Connections are available for air, hot water, steam inflation, and recirculation.
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Lightweight Lightweight
Petersen® Multi-Flex⢠Packers are much lighter than molded rubber packers for easy placement.
Note Note
Other Sizes and Configurations also availableAdvise position of lateral on main lineNylon loops on each of three ends for positioning
Smooth And Even Relining Smooth And Even Relining
The Petersen® Packer has a fixed inflated diameter independent of the pipeline. This allows for a smooth repair with a constant diameter unlike rubber packers that generally follow the contour of the broken area of the pipeline causing an irregular I.D. repair.
Specifications Inflation Port Qc
1/4 in
Specifications Lateral Line Contact Length
40 in | 1016 mm
Specifications Main Line Contact Length
40 in | 1016 mm
Specifications Maximum Inflation
25 psig | 1.7 bar
Specifications Maximum Lateral Line Diameter
4 in | 102 mm
Specifications Maximum Main Line Diameter
10 in | 254 mm
Specifications Maximum Pipeline Head
28 ft | 8.8 m
Specifications Shipping Weight
12 lb
