Duolok 90° Male Elbow SAE - Alloy C-276, 1/2 x 9/16-18
Duolok 90° Male Elbow SAE - Alloy C-276, 1/2 x 9/16-18
SKU:130-8fa060
Alloy C-276 90° Male Elbow SAE Fitting, 1/2 x 9/16-18, for precise and durable tube connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok 90° Male Elbow SAE - Alloy C-276, 1/2 x 9/16-18
$24.99
Quantity: 1
Claim Your Seller Account
Duolok 90° Male Elbow SAE - Alloy C-276, 1/2 x 9/16-18
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 90° Male Elbow SAE Thread fitting is expertly crafted from Alloy C-276, ensuring exceptional durability and corrosion resistance. Featuring a Tube Fitting x Male SAE connection with precise sizes of 1/2 inch and 3/8 inch respectively, this fitting guarantees a secure and leak-free connection. Its compact 90-degree elbow design allows for easy installation in tight spaces, making it ideal for instrumentation applications. Trust the Duolok brand for quality, reliability, and compliance with industry standards.
Product Specifications
Features Features

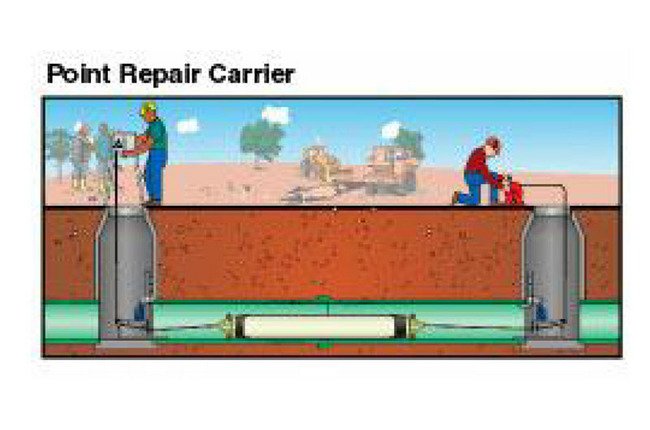

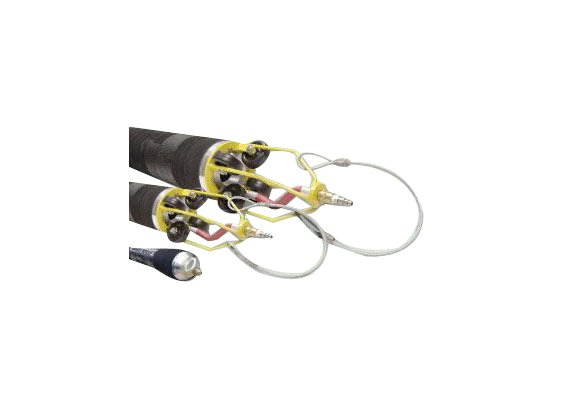

Made of aramid corded natural rubber: extremely durable and flexibleFlexible: All units can fold in half for transport1/4" NPT Inflation Port with male quick disconnect for ease of connectionIntegrated cage/wheel assembly for ease of movement down the pipeBypass design allows sewage bypass during repairUnique centered inflation port for use with push rod inflation polesWire harness keeps unit centered in pipe2" FPT bypass allows for continuous sewer flow
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Made by Cherne
Specifications Approximate Contact Length
132 in
Specifications Deflated Diameter
4.63 in
Specifications Diameter
6 to 10 in
Specifications Inflation Pressure
25 psi | 1.7 bar
Specifications Length
12 ft
Specifications Maximum Pipe Diameter
10.25 in
Specifications Shipping Weight
40 lb
