The Duolok Alloy 400 Male Branch Tee is a premium choice for reliable tube connections in industrial settings. Constructed with Alloy 400, this tee ensures durability and corrosion resistance. It features 1/2 in tube fittings on all three connections with 1/2-14 MNPT male threading, offering a secure and leak-free connection. The tee's Tee shape design and precise dimensions meet industry standards, making it ideal for instrumentation applications.
Product Specifications
Features Features

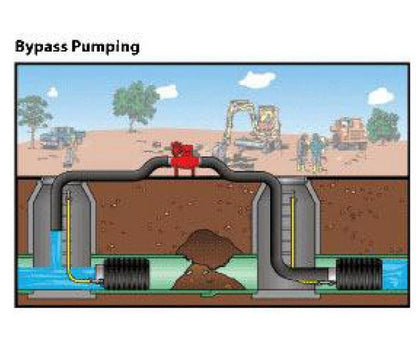

Multi-Size Large Flow-Through Bypass Plugs with Interchangeable FlangesMulti-size offer great expansion rangeLightweight aluminum bypassFeature interchangeable bypass flange, allowing the same plug to be used for different applicationsRemovable tire valve allows for easy replacementMade with Natural Rubber
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
NPT bypass plugs threaded on one end only.Caps/plugs provided on sizes through 6" bypass
Specifications By Pass Diameter
8 in OD
Specifications Chain Eye Bolts
3/8 in (1)
Specifications Deflated Diameter
9.13 in | 232 mm
Specifications Deflated Length
20 in | 508 mm
Specifications Inflation Pressure
30 psi | 2.1 bar
Specifications Inflation Thread
1/4 in (1)
Specifications Maximum Back Pressure
11 psi | 0.76 bar | 25 ft | 7.6 m
Specifications Nominal Size
10 in | 250 mm
Specifications Range Of Use
9.75 to 10.46 in | 250 to 266 mm
Specifications Shipping Weight
22 lb
