Duolok Alloy C-276 3/16 in. Front Ferrule Tube Fitting
Duolok Alloy C-276 3/16 in. Front Ferrule Tube Fitting
SKU:SOU-9a706b
Secure and leak-free, Duolok alloy C-276 front ferrule tube fitting for precise 3/16 in. connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Duolok Alloy C-276 3/16 in. Front Ferrule Tube Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Duolok Alloy C-276 3/16 in. Front Ferrule Tube Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Alloy C-276 3/16 in. Front Ferrule Tube Fitting is designed to provide secure and leak-free connections in instrumentation tube systems. Crafted from high-quality Alloy C-276, this front ferrule ensures durability and corrosion resistance. With a fitting size of 3/16 inches and part of the Duolok series, it guarantees precise and reliable performance. Ideal for various industrial applications, this tube fitting meets stringent quality standards for seamless integration and long-term functionality.

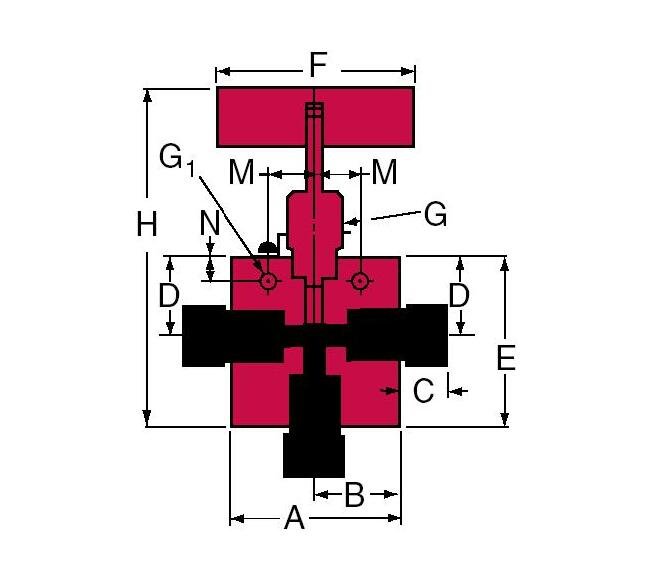

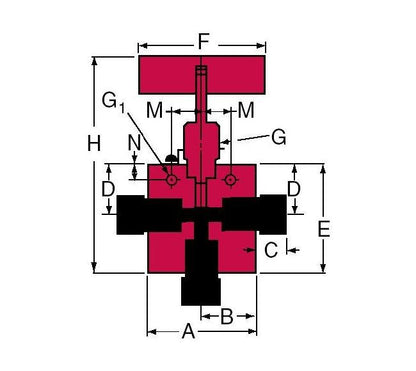

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.25 in | 133.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
