Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting
Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting
SKU:SOU-9eb0ec
Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting - High precision, durability, and corrosion resistance for demanding applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid system with precision using the Duolok Alloy C-276 3/8 in. Front Ferrule Tube Fitting. Crafted with high-quality Alloy C-276 material, this fitting ensures durability and corrosion resistance. Designed as a Front Ferrule type with a 3/8 in. fitting size, it guarantees a secure and leak-free connection. The Duolok Brand Series represents reliability and performance in instrumentation tube fittings, making it ideal for industrial and government applications that demand top-tier quality and compliance.

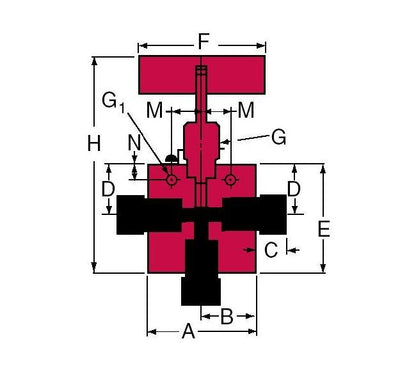

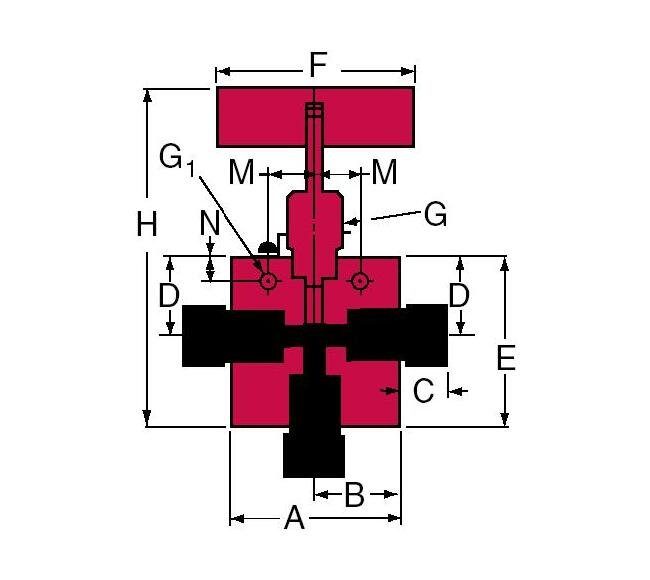

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.12 in | 53.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.74 in | 120.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
