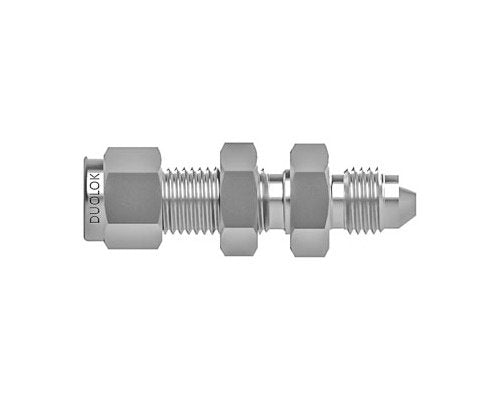

Duolok AN Bulkhead Union - 3/4 Tube x 3/4 AN, 316 SS
Duolok AN Bulkhead Union - 3/4 Tube x 3/4 AN, 316 SS
SKU:FIT-52cde5
Premium Duolok AN Bulkhead Union, 3/4 Tube x 3/4 AN, 316 SS. Reliable, leak-free connection for instrumentation applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok AN Bulkhead Union - 3/4 Tube x 3/4 AN, 316 SS
$34.99
Quantity: 1
Claim Your Seller Account
Duolok AN Bulkhead Union - 3/4 Tube x 3/4 AN, 316 SS
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok AN Bulkhead Union features a 3/4 inch Tube Fitting connecting with a 3/4 inch Male AN fitting, constructed from high-quality 316 SS. Designed for secure and leak-free connections, this bulkhead union is ideal for instrumentation applications requiring reliability and durability. With precise dimensions and corrosion resistance, it meets stringent industry standards for seamless integration in demanding environments.
Product Specifications

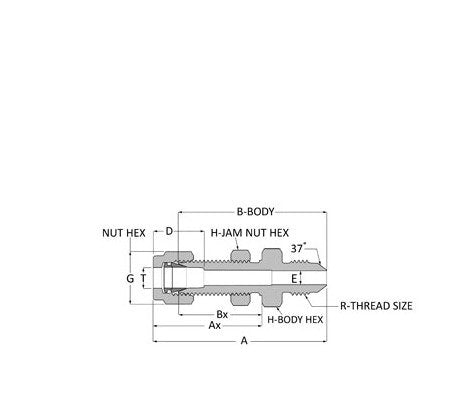

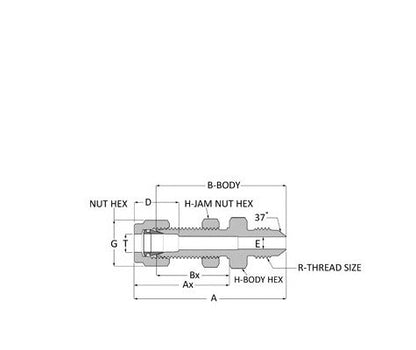

Dimensions A
3.11 in
Dimensions An Tube Flare Size
3/4
Dimensions Ax
1.87 in
Dimensions B
2.71 in
Dimensions Bx
1.47 in
Dimensions D
0.96 in
Dimensions E
0.61 in
Dimensions G
1 1/8 in
Dimensions H
1 3/16 in
Dimensions Maximum Panel Thickness
0.66 in
Dimensions Panel Hole Drill Size
1 1/64 in
Dimensions R Thread Size
1 1/16-12 UNF-2
Dimensions T
3/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Duolok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to AN Fitting - Duolok
