Duolok AN Bulkhead Union - Brass, 1/4 Tube x 1/4 Male AN
Duolok AN Bulkhead Union - Brass, 1/4 Tube x 1/4 Male AN
SKU:FIT-02469a
Secure Duolok Brass Bulkhead Union for 1/4 Tube x 1/4 Male AN fittings.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Duolok AN Bulkhead Union - Brass, 1/4 Tube x 1/4 Male AN
$19.99
Quantity: 1
Claim Your Seller Account
Duolok AN Bulkhead Union - Brass, 1/4 Tube x 1/4 Male AN
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok AN Bulkhead Union in Brass features a secure connection between a 1/4 tube fitting and a 1/4 male AN fitting. With a straight shape and bulkhead specialty, it ensures a reliable link suitable for various industrial applications. Crafted with high-quality brass, this union meets stringent standards for durability and performance.

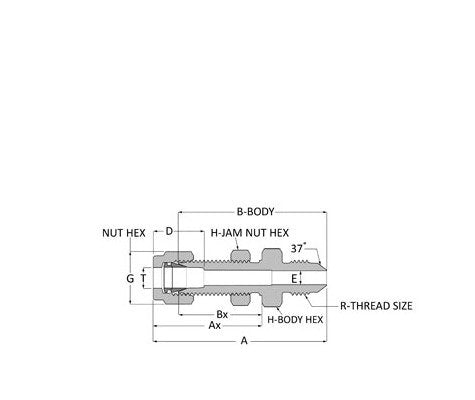

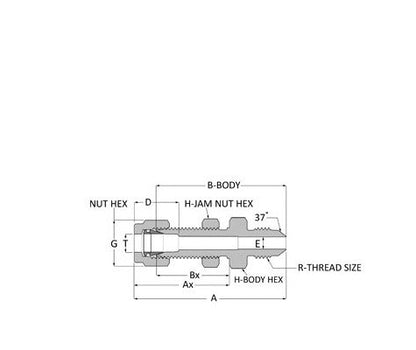

Product Specifications
Dimensions A
2.12 in
Dimensions An Tube Flare Size
1/4
Dimensions Ax
1.32 in
Dimensions B
1.83 in
Dimensions Bx
1.03 in
Dimensions D
0.60 in
Dimensions E
0.17 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions R Thread Size
7/16-20 UNF-2
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to AN Fitting - Duolok
