The Duolok AN Bulkhead Union is a high-quality brass fitting designed for seamless integration in instrumentation systems. This straight bulkhead fitting features a 1-inch tube fitting on one end and a 1-inch male AN connection on the other. With precise dimensions and solid construction, it ensures a secure and leak-free connection. Ideal for a wide range of applications, this Duolok fitting meets stringent industry standards for durability and performance.

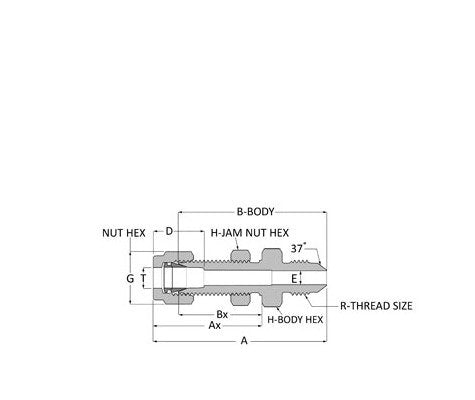

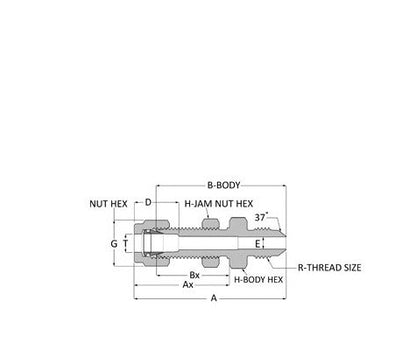

Product Specifications
Dimensions A
3.64 in
Dimensions An Tube Flare Size
1
Dimensions Ax
2.26 in
Dimensions B
3.16 in
Dimensions Bx
1.78 in
Dimensions D
1.23 in
Dimensions E
0.84 in
Dimensions G
1 1/2 in
Dimensions H
1 5/8 in
Dimensions Maximum Panel Thickness
0.75 in
Dimensions Panel Hole Drill Size
1 21/64 in
Dimensions R Thread Size
1 5/16-12 UNF-2
Dimensions T
1 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to AN Fitting - Duolok
