Duolok Brass Bulkhead AN Union - 1/2 Tube x 1/2 Male AN
Duolok Brass Bulkhead AN Union - 1/2 Tube x 1/2 Male AN
SKU:FIT-eb9719
High-quality Duolok Brass Bulkhead AN Union for secure Tube Fitting x Male AN connections.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Duolok Brass Bulkhead AN Union - 1/2 Tube x 1/2 Male AN
$23.99
Quantity: 1
Claim Your Seller Account
Duolok Brass Bulkhead AN Union - 1/2 Tube x 1/2 Male AN
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

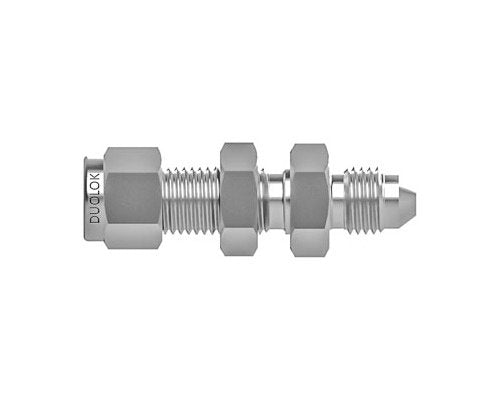

The Duolok Brass Bulkhead AN Union is a high-quality fitting designed for seamless Tube Fitting to Male AN connections. Made of durable brass, this straight-shaped union ensures a secure and leak-free interface. With precise dimensions meeting industry standards, including a 1/2-inch Tube fitting size and 1/2-inch Male AN size, this union guarantees reliable performance. Ideal for instrumentation purposes, the Duolok Bulkhead Union offers ease of installation on panels up to 0.50 inches thick with a 49/64-inch panel hole drill size.

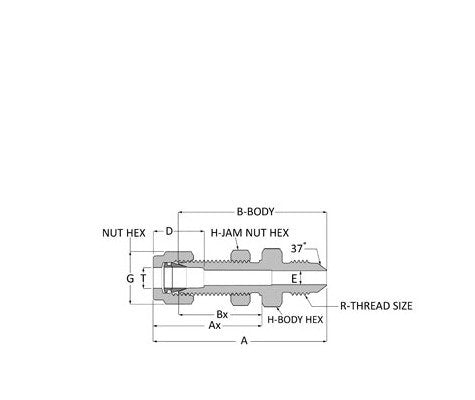

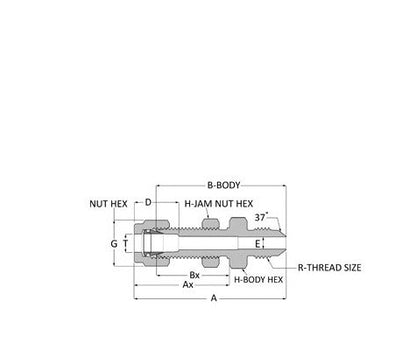

Product Specifications
Dimensions A
2.59 in
Dimensions An Tube Flare Size
1/2
Dimensions Ax
1.65 in
Dimensions B
2.19 in
Dimensions Bx
1.25 in
Dimensions D
0.90 in
Dimensions E
0.39 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions R Thread Size
3/4-16 UNJF-2
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to AN Fitting - Duolok
