Duolok Brass Female Branch Tee - 8mm x 8mm x 1/8-27 FNPT
Duolok Brass Female Branch Tee - 8mm x 8mm x 1/8-27 FNPT
SKU:MUL-897962
Precision Duolok Brass Female Branch Tee for reliable fluid connections, crafted from durable brass, 8mm connections, 1/8-27 FNPT. Ideal for instrumentation systems.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Duolok Brass Female Branch Tee - 8mm x 8mm x 1/8-27 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Duolok Brass Female Branch Tee - 8mm x 8mm x 1/8-27 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Brass Female Branch Tee is a precision-engineered tube fitting designed for reliable fluid system connections. Crafted from high-quality brass, this tee ensures durability and corrosion resistance. With precise measurements of 8mm connections on both sides and a 1/8-27 FNPT port, it guarantees a secure fit. The tee's T-shaped design allows seamless branching in instrumentation systems, meeting stringent industry standards for performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

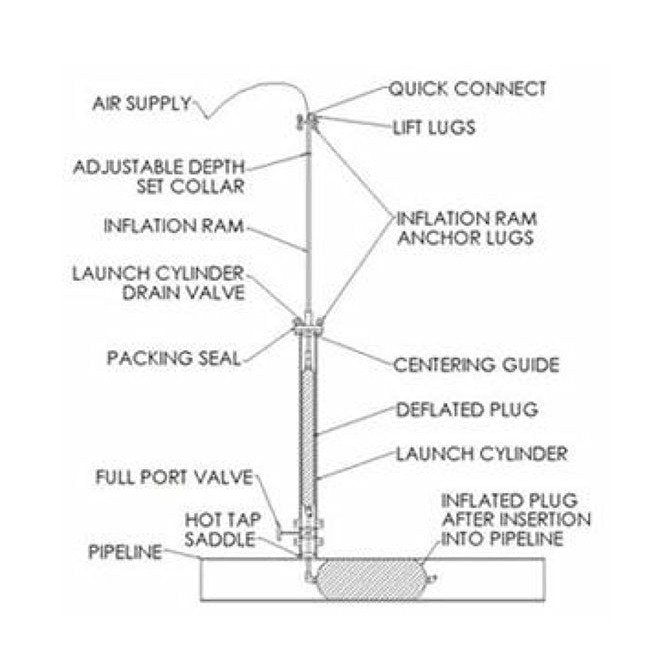

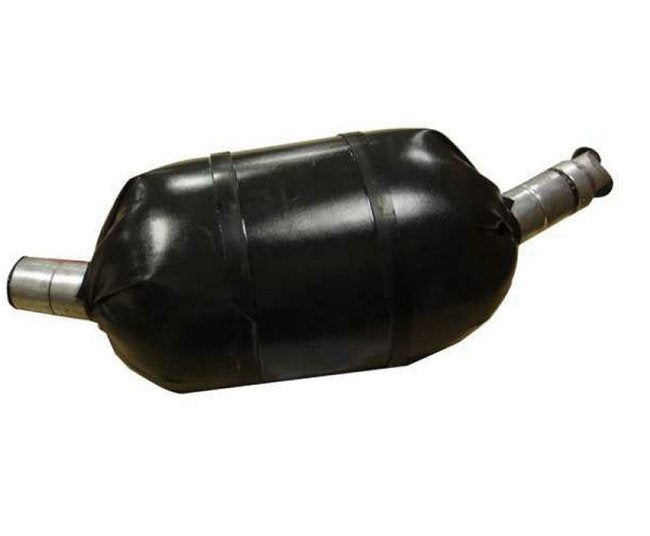

Easy hot tap (live) insertionStops flow for repairsSmall deflated diameterFlexibility allows navigation around cornersTough materials for long lifeThese plugs are generally made with a Nylon reinforced Polyurethane outer ply. Many other materials and sizes available.May not provide a perfect seal for pipeline testing without customization
Inflatable Plug Warning Inflatable Plug Warning
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note Note
Other sizes and custom configurations also available
Specifications Deflated Length
63 in | 1600 mm
Specifications Hot Tap Plug Diameter
6.25 in | 159 mm
Specifications Inflation Port
2 M
Specifications Maximum Inflation
48 psig | 3.3 bar
Specifications Maximum Pipeline Head
55 ft | 16.7 m
Specifications Maximum Plug Diameter
18 in | 457 mm
Specifications Shipping Weight
36 lb
