Duolok Brass Front Ferrule - 1 1/4 in. Tube Fitting
Duolok Brass Front Ferrule - 1 1/4 in. Tube Fitting
SKU:HIG-c76f9f
Precision-engineered Duolok Brass Front Ferrule for 1 1/4 in. tube fittings, ensures secure leak-free connections in demanding applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok Brass Front Ferrule - 1 1/4 in. Tube Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Duolok Brass Front Ferrule - 1 1/4 in. Tube Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Brass Front Ferrule is designed for high-performance tube fitting applications. Made of sturdy brass, this front ferrule ensures a secure and leak-free connection. With a fitting size of 1 1/4 inches and part of the Duolok series, it offers superior durability and reliability. Ideal for instrumentation tube fittings, this front ferrule is precision-engineered for optimal performance in demanding industrial settings.

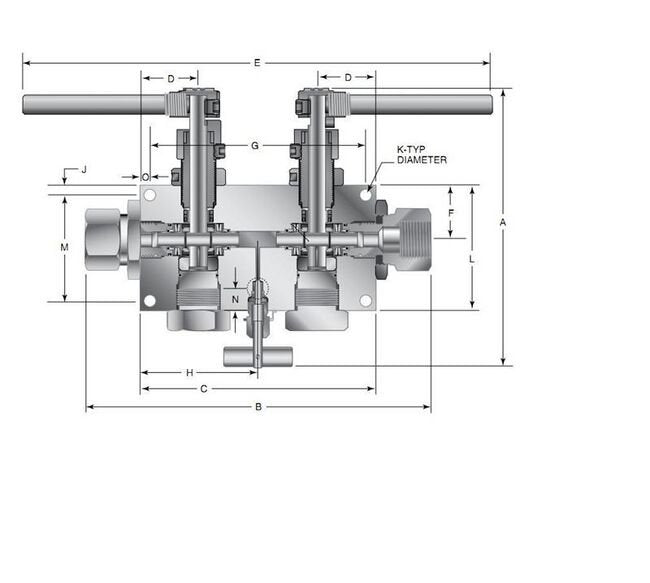

Product Specifications
Specifications A Height
7.14 in | 181.36 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
8.81 in | 223.77 mm
Specifications Connection Type
SF375CX20
Specifications C Width
6.00 in | 152.40 mm
Specifications D Length
1.5 in | 38.1 mm
Specifications End Connection Number
M6
Specifications E Length
12.94 in | 328.68 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
5.00 in | 127.00 mm
Specifications H Dimension
3 in | 76.20 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
3.19 in | 81.03 mm
Specifications Mawp At Room Temperature
15000 psi | 1034 bar
Specifications Minimum Orifice
0.203 in | 5.16 mm
Specifications M Height
2.38 in | 60.45 mm
Specifications N Length
0.65 in | 16.51 mm
Specifications O Dimension
0.5 in | 12.70 mm
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Specifications Vent Connection
SF250CX20
Specifications Vent Connection Number
M4
Valve Maintenance 0
Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve options/details for full description, connection details and high temperature options. For material options consult factory.
