Duolok Brass Front Ferrule, 1/4 in. Tube Fitting
Duolok Brass Front Ferrule, 1/4 in. Tube Fitting
SKU:HIG-d55044
High-quality Duolok Brass Front Ferrule for 1/4 inch tubing. Ensures leak-free, secure connections for optimal performance.
Regular price
$0.68
Regular price
Sale price
$0.68
Unit price
per
Initiate Order
Duolok Brass Front Ferrule, 1/4 in. Tube Fitting
$0.68
Quantity: 1
Claim Your Seller Account
Duolok Brass Front Ferrule, 1/4 in. Tube Fitting
$0.68
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing systems with the Duolok Brass Front Ferrule. This precision-engineered fitting features high-quality brass construction, ensuring durability and reliable performance. Designed for 1/4 inch tubing, it guarantees a secure connection with leak-free operation. The Duolok brand series offers superior quality and precision for instrumentation tube fittings. Ideal for both consumer and institutional applications, this front ferrule enhances efficiency and safety in fluid systems.

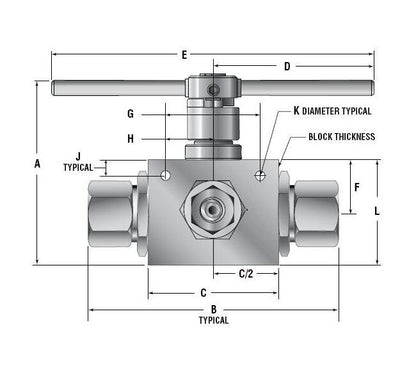

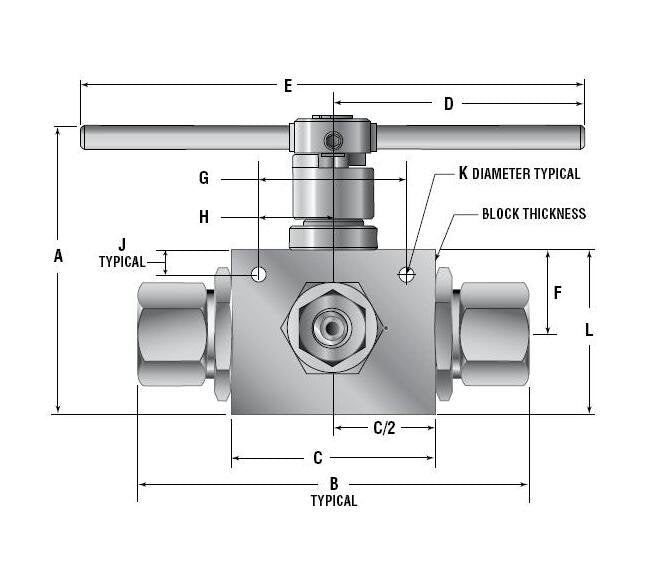

Product Specifications
Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
1/2 NPT
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
P8
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.375 in | 9.52 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
