Duolok Brass Front Ferrule - 1 inch Tube Fitting
Duolok Brass Front Ferrule - 1 inch Tube Fitting
SKU:HIG-af9448
High-quality Duolok Brass Front Ferrule for reliable 1 inch tube connections. Compliant with Federal/DoD standards.
Regular price
$3.27
Regular price
Sale price
$3.27
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Duolok Brass Front Ferrule, designed for 1 inch tube fittings, offers superior durability and a tight, leak-resistant connection. Made from high-quality brass, this front ferrule ensures reliable performance in instrumentation applications. Compliant with Federal/DoD procurement standards and industry certifications, it meets the stringent requirements of institutional buyers.

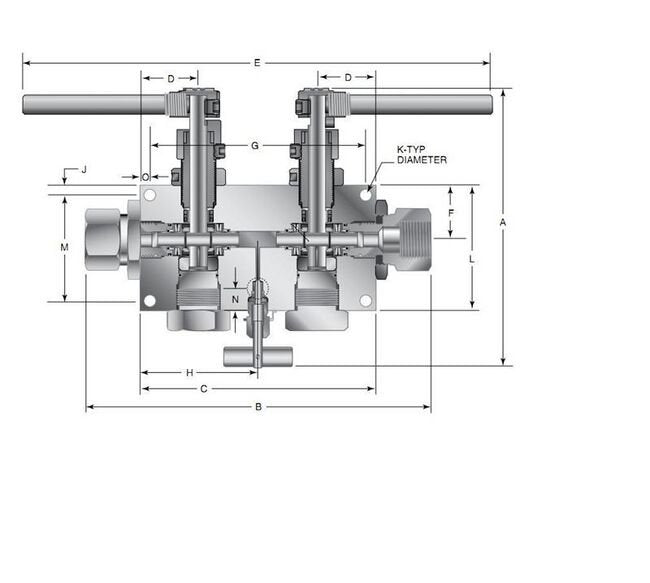

Product Specifications
Specifications A Height
7.14 in | 181.36 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
8.81 in | 223.77 mm
Specifications Connection Type
3/8 NPT
Specifications C Width
6.00 in | 152.40 mm
Specifications D Length
1.5 in | 38.1 mm
Specifications End Connection Number
P6
Specifications E Length
12.94 in | 328.68 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
5.00 in | 127.00 mm
Specifications H Dimension
3 in | 76.20 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
3.19 in | 81.03 mm
Specifications Mawp At Room Temperature
15000 psi | 1034 bar
Specifications Minimum Orifice
0.328 in | 8.33 mm
Specifications M Height
2.38 in | 60.45 mm
Specifications N Length
0.65 in | 16.51 mm
Specifications O Dimension
0.5 in | 12.70 mm
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Specifications Vent Connection
1/4 NPT
Specifications Vent Connection Number
P4
Valve Maintenance 0
Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve options/details for full description, connection details and high temperature options. For material options consult factory.
