Duolok Brass Front Ferrule, 3/16 in. Tube Fitting
Duolok Brass Front Ferrule, 3/16 in. Tube Fitting
SKU:HIG-22d1d9
Duolok Brass Front Ferrule for secure 3/16 in. tube connections. Reliable, durable, and precise for instrumentation applications.
Regular price
$0.73
Regular price
Sale price
$0.73
Unit price
per
Initiate Order
Duolok Brass Front Ferrule, 3/16 in. Tube Fitting
$0.73
Quantity: 1
Claim Your Seller Account
Duolok Brass Front Ferrule, 3/16 in. Tube Fitting
$0.73
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Brass Front Ferrule is a precision-engineered tube fitting essential for secure and leak-free connections in instrumentation applications. Crafted from durable brass, this front ferrule ensures reliable performance and longevity. With a fitting size of 3/16 inches and part of the Duolok series, it guarantees a tight and secure connection for optimal performance. Ideal for industrial and institutional settings, this front ferrule meets strict quality standards and enhances system integrity.
Ready to Grow Without Cash Flow Constraints?

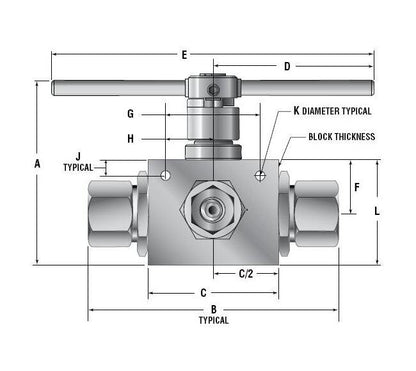

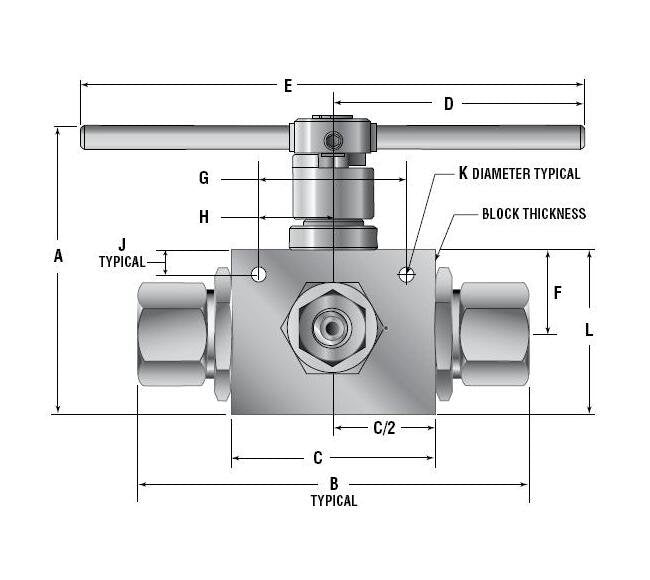

Product Specifications
Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
3/8 NPT
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
P6
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.375 in | 9.52 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
