Duolok Brass Front Ferrule - 4mm Tube Fitting
Duolok Brass Front Ferrule - 4mm Tube Fitting
SKU:SOU-c6b686
Precision Duolok Brass Front Ferrule - 4mm for secure instrumentation tube connections.
Regular price
$0.89
Regular price
Sale price
$0.89
Unit price
per
Initiate Order
Duolok Brass Front Ferrule - 4mm Tube Fitting
$0.89
Quantity: 1
Claim Your Seller Account
Duolok Brass Front Ferrule - 4mm Tube Fitting
$0.89
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Brass Front Ferrule is a precision-engineered tube fitting essential for secure and leak-free connections in instrumentation applications. Crafted from high-quality brass, this front ferrule ensures durability and reliability. Its 4mm fitting size and Duolok brand series guarantee a perfect match for seamless installations. Experience superior performance and peace of mind with this top-notch instrument tube fitting component.

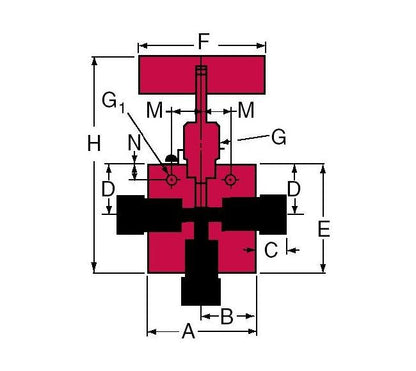

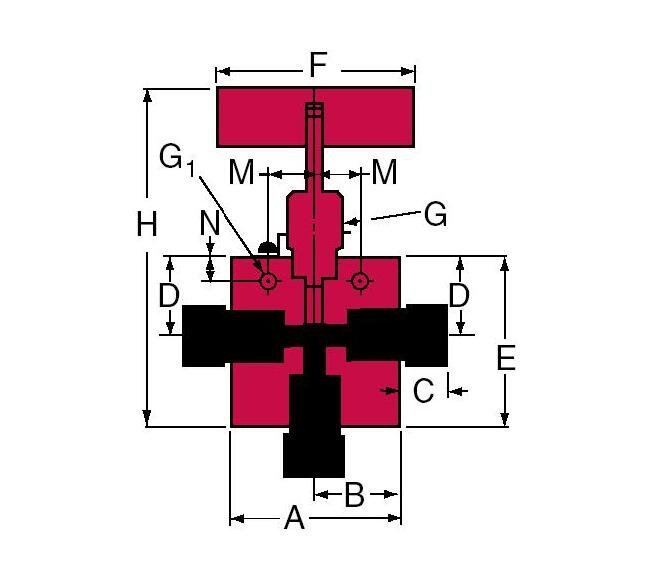

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.62 in | 117.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
