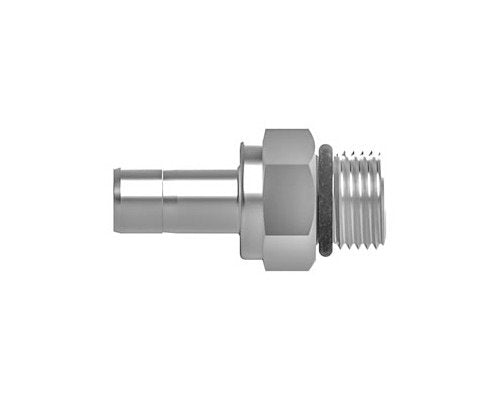

Duolok Brass Male Adapter SAE - 1/4 Tube Stub x 7/16-20 Male SAE
Duolok Brass Male Adapter SAE - 1/4 Tube Stub x 7/16-20 Male SAE
SKU:FIT-1ee7eb
Enhance your system with the Duolok Brass Male Adapter - Brass body, 1/4 Tube Stub x 7/16-20 Male SAE connection.
Regular price
$16.99
Regular price
Sale price
$16.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Upgrade your fluid systems with the Duolok Brass Male Adapter. This straight fitting features a Brass body, 1/4 in Tube Stub, and 7/16-20 Male SAE connection for secure installations. The Duolok series ensures reliability, while the compact design fits various applications. Compliant with federal procurement standards, this adapter guarantees performance and durability.

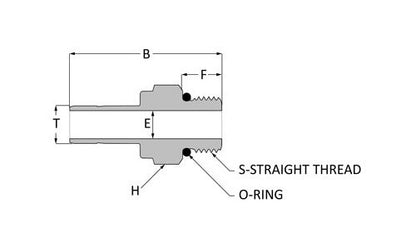

Product Specifications
Dimensions As568 O Ring Uniform Size Number
-904
Dimensions B
1.39 in
Dimensions E
0.19 in
Dimensions F
0.36 in
Dimensions H
9/16 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Stub
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
Tube Stub x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Tube Fitting to SAE Thread Fitting - Duolok
