Duolok BSPP Male Connector - 25mm Tube x 3/4in Male BSPP, Alloy 400
Duolok BSPP Male Connector - 25mm Tube x 3/4in Male BSPP, Alloy 400
SKU:148-c0edbe
High-quality Duolok BSPP Male Connector for 25mm tube x 3/4in Male BSPP connections. Resistant to corrosion with durable Alloy 400 construction.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok BSPP Male Connector - 25mm Tube x 3/4in Male BSPP, Alloy 400
$34.99
Quantity: 1
Claim Your Seller Account
Duolok BSPP Male Connector - 25mm Tube x 3/4in Male BSPP, Alloy 400
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPP Male Connector in Alloy 400 is a top-quality instrument tube fitting designed for seamless 25mm tube to 3/4in Male BSPP connections. Built with precision, it ensures a reliable and secure fit for various industrial applications. The straight shape and durable materials make it resistant to corrosion and pressure, meeting the highest standards of performance and longevity.
Product Specifications
Installation Instructions Installation Instructions

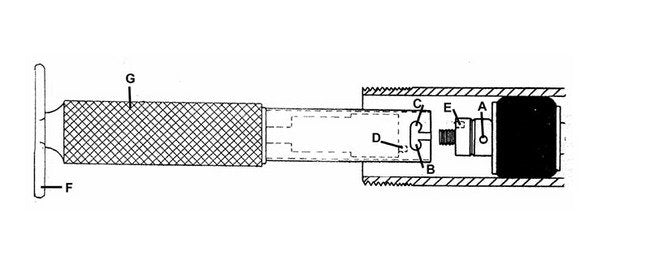

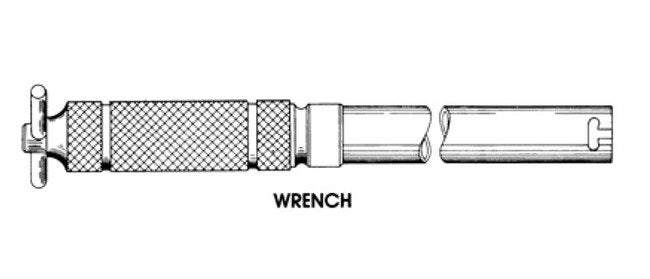

Slip the plug onto the end of the wrench engaging pin "A" into the slot at the end of the wrench.Turn the pin "A" into notch "B". This will hold the plug onto the end of the wrench.Turn the wrench handle "F" clockwise with one hand while holding the wrench at "G" with the other until pin "D" on the wrench drops into the hole "E" in the Expander plug nut.Insert the plug into the fitting or pipe.Hold the wrench at "G" and turn the handle "F" clockwise to expand the plug.To remove the wrench just push in on the wrench and turn clockwise enough to let pin "A" out of notch "B" and out the slot at the end of the wrench.
Mechanical Plug Warning Mechanical Plug Warning
Maximum head pressures that a pipe plug may hold back can only be estimated. Pressures are influenced by many factors including fluid and debris in the pipeline, type and condition of pipe, tightness of plug seal, and temperature. Plugs should always be inserted fully into pipeline and should be mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use a mechanical plug when its failure could cause injury.
Removal Instructions Removal Instructions
Slip notch in end of wrench over pin "A" and turn wrench right engaging pin "A" into notch at "C."Hold the wrench at "G" with one hand and turn the wrench handle "F" counter clockwise to release the plug.Remove the plug with the wrench.Only hand tighten the plug to prevent damage to the wrench or plug. In expanding the plug, don't use any extra leverage on the wrench handle "F" as it is not necessary to tighten the plug any tighter than the ordinary man can pull on handle "F." Any extra leverage would tend to damage the wrench or the plug.
Specifications Length
24 in | 610 mm
Specifications Shipping Weight
3 lb
Specifications Use For
148-3 Series Remote Placement Expander Plugs
