Duolok BSPP Male Connector - Alloy 400, 6mm x 1/4in
Duolok BSPP Male Connector - Alloy 400, 6mm x 1/4in
SKU:148-86733c
High-quality Duolok BSPP Male Connector in Alloy 400 for precision instrumentation applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Duolok BSPP Male Connector - Alloy 400, 6mm x 1/4in
$25.99
Quantity: 1
Claim Your Seller Account
Duolok BSPP Male Connector - Alloy 400, 6mm x 1/4in
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPP Male Connector in Alloy 400 is a high-quality tube fitting designed for precision instrumentation applications. This connector features a 6mm tube fitting connection and a 1/4in male BSPP connection, ensuring a secure and reliable fit. With a straight shape and compact dimensions, this connector is built to withstand demanding industrial environments while maintaining optimal performance. Made by SSP Corp. under the Duolok series, this connector combines durability and functionality to meet the strict requirements of institutional buyers.
Product Specifications
Installation Instructions Installation Instructions

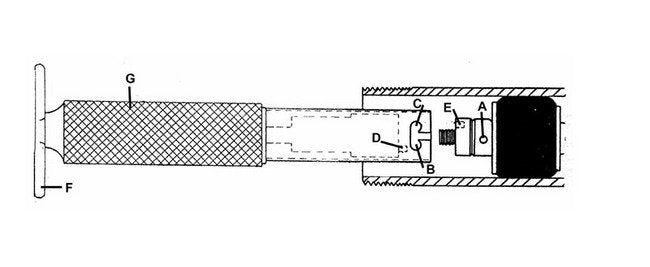

Slip the plug onto the end of the wrench engaging pin "A" into the slot at the end of the wrench.Turn the pin "A" into notch "B". This will hold the plug onto the end of the wrench.Turn the wrench handle "F" clockwise with one hand while holding the wrench at "G" with the other until pin "D" on the wrench drops into the hole "E" in the Expander plug nut.Insert the plug into the fitting or pipe.Hold the wrench at "G" and turn the handle "F" clockwise to expand the plug.To remove the wrench just push in on the wrench and turn clockwise enough to let pin "A" out of notch "B" and out the slot at the end of the wrench.
Mechanical Plug Warning Mechanical Plug Warning
Maximum head pressures that a pipe plug may hold back can only be estimated. Pressures are influenced by many factors including fluid and debris in the pipeline, type and condition of pipe, tightness of plug seal, and temperature. Plugs should always be inserted fully into pipeline and should be mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use a mechanical plug when its failure could cause injury.
Removal Instructions Removal Instructions
Slip notch in end of wrench over pin "A" and turn wrench right engaging pin "A" into notch at "C."Hold the wrench at "G" with one hand and turn the wrench handle "F" counter clockwise to release the plug.Remove the plug with the wrench.Only hand tighten the plug to prevent damage to the wrench or plug. In expanding the plug, don't use any extra leverage on the wrench handle "F" as it is not necessary to tighten the plug any tighter than the ordinary man can pull on handle "F." Any extra leverage would tend to damage the wrench or the plug.

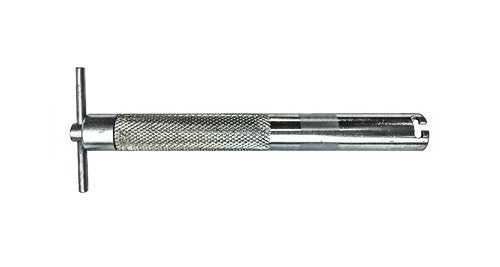

Specifications Length
18 in | 457 mm
Specifications Shipping Weight
2 lb
Specifications Use For
148-3 Series Remote Placement Expander Plugs
