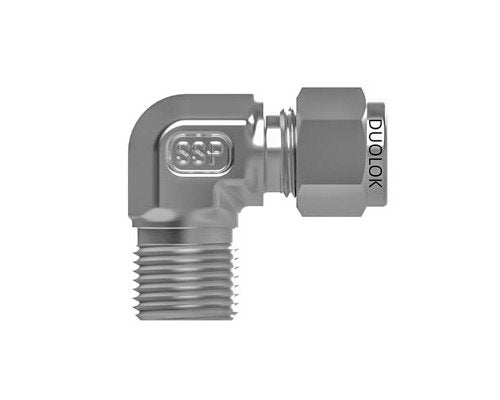

Duolok BSPT 90° Male Elbow - Brass, 22mm x 3/4in
Duolok BSPT 90° Male Elbow - Brass, 22mm x 3/4in
SKU:FIT-24ecb6
High-quality brass Duolok Male Elbow with 22mm Tube Fitting x 3/4in Male BSPT for secure connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Duolok BSPT 90° Male Elbow is expertly crafted from brass to ensure durability and reliability. Featuring a 22mm Tube Fitting on one end and a 3/4in Male BSPT on the other, this fitting offers a secure and tight connection. The elbow shape allows for seamless directional changes in piping, perfect for instrumentation applications. With precise dimensions and high-quality materials, this fitting meets stringent industry standards for performance and longevity.

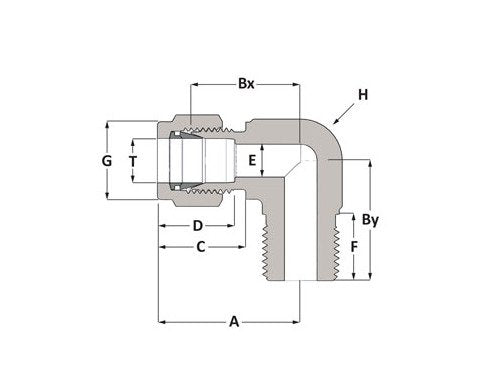

Product Specifications
Dimensions A
44.6 mm
Dimensions Bx
34.5 mm
Dimensions By
41.6 mm
Dimensions C
22.0 mm
Dimensions D
26.0 mm
Dimensions E
15.9 mm
Dimensions F
19.3 mm
Dimensions G
1 3/8 in | 35 mm
Dimensions H
1 3/8 in | 35 mm
Dimensions P
3/4 in
Dimensions T
22 mm
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
22 mm
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
