Duolok BSPT Female Connector, 20mm x 3/4" Female BSPT, Brass

Name: Duolok BSPT Female Connector, 20mm x 3/4" Female BSPT, Brass
Brand: SSP Fittings Corp.
SKU: FIT-226b25
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-226b25

High-quality Duolok BSPT Female Connector for secure tube fittings, 20mm x 3/4" Female BSPT, made of durable brass.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

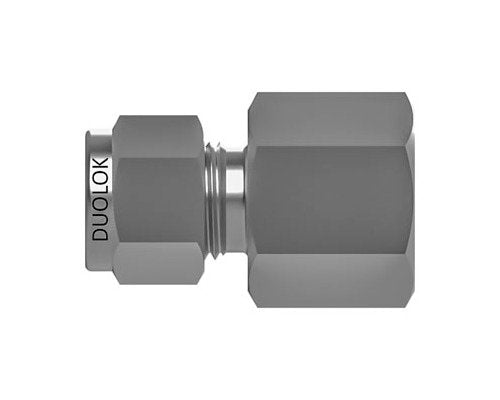

The Duolok BSPT Female Connector is a precision-engineered fitting designed for seamless instrumentation tube connections. Made from high-quality brass, it ensures durability and corrosion resistance. This straight connector features a 20mm tube fitting connection on one end and a 3/4" female BSPT connection on the other, providing a secure and leak-free joint. Ideal for industrial applications requiring reliable fluid transfer, this Duolok connector meets stringent quality standards.

Product Specifications

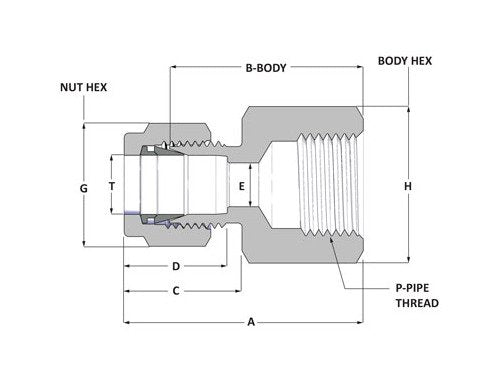

Dimensions A

49.7 mm

Dimensions B

39.6 mm

Dimensions C

22 mm

Dimensions D

26 mm

Dimensions E

15.9 mm

Dimensions F

20.6 mm

Dimensions G

32 mm

Dimensions H

35 mm

Dimensions P

3/4 in

Dimensions T

20 mm

Specifications Body Material

Brass

Specifications Brand Series

Duolok

Specifications Connection 1 Size

20 mm

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

3/4 in

Specifications Connection 2 Type

Female BSPT

Specifications End Connections

TF x Female BSPT

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Straight

Category 6

Tube Fitting to BSP Thread Fitting - Duolok

Duolok BSPT Female Connector, 20mm x 3/4" Female BSPT, Brass
