Duolok BSPT Female Connector - 8mm x 1/8" - Alloy 400
Duolok BSPT Female Connector - 8mm x 1/8" - Alloy 400
SKU:147-cc58d2
High-quality Duolok BSPT Female Connector ideal for instrumentation tubing with precise 8mm x 1/8" dimensions and Alloy 400 material.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Duolok BSPT Female Connector - 8mm x 1/8" - Alloy 400
$34.99
Quantity: 1
Claim Your Seller Account
Duolok BSPT Female Connector - 8mm x 1/8" - Alloy 400
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPT Female Connector features high-quality Alloy 400 construction, ensuring durability and corrosion resistance. This straight connector is designed for 8mm tubing with a 1/8" Female BSPT end, ideal for instrumentation applications. With precise dimensions and a reliable connection mechanism, this fitting guarantees leak-free performance. Trusted by leading institutions, this Duolok connector meets stringent industry standards for reliable fluid system operations.
Product Specifications
Mechanical Plug Warning Mechanical Plug Warning
Maximum head pressures that a pipe plug may hold back can only be estimated. Pressures are influenced by many factors including fluid and debris in the pipeline, type and condition of pipe, tightness of plug seal, and temperature. Plugs should always be inserted fully into pipeline and should be mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use a mechanical plug when its failure could cause injury.
Note Note
Other sizes and seal material availableM = Male NPT, F = Female NPTNEVER use a test pressure greater than the weakest component in the system can handle. Test Pressure specified in table is equivalent to 80% of the pressure that will yield ASTM A106 Grade B pipe. The test pressure for higher and lower strength pipes will differ proportionally. The maximum test pressure for higher strength pipe must never exceed the highest test pressure listed for that pipe O.D.Sizes that do not have a test pressure listed differ from standard pipe sizes. These plug sizes are normally used to test tubing. For use of these plug sizes in tubing with a minimum yield strength of 35ksi, the maximum test pressure is estimated by the test pressure listed for the equivalent or next larger pipe O.D. with the equivalent or next thinner wall thickness. The test pressure for higher and lower strength tubes will differ proportionally. The maximum test pressure for higher strength tubes must never exceed the highest test pressure listed for the equivalent or next larger pipe size. NEVER use a test pressure greater than the weakest component in the system can safely handle.Standard Seal Material: U = Urethane, N = NeopreneThese plugs were designed to operate in A106 grade B pipe with a hardness up to 20 on the Rockwell C scale (HRC 20). Plugs may be customized for hardness to HRC 25. Plugs for other hardness ratings require a customers pipe sample and further pressure testing.
Specifications By Pass Connection In National Pipe Thread Npt
3/4 M
Specifications Installation Depth
4.69 in | 119.1 mm
Specifications Maximum Pipe Inside Diameter
4.47 in | 113.5 mm
Specifications Maximum Test Pressure
7000 psig | 480 bar
Specifications Minimum Size Range Inside Diameter
4.28 in | 108.7 mm
Specifications Nominal Pipe Schedule
160
Specifications Nominal Pipe Size
5 in
Specifications Overall Length
10.13 in | 257.2 mm
Specifications Shaft Quantity
1
Specifications Shipping Weight
18 lb
Specifications Standard Seal Material
Neoprene
Applications Applications

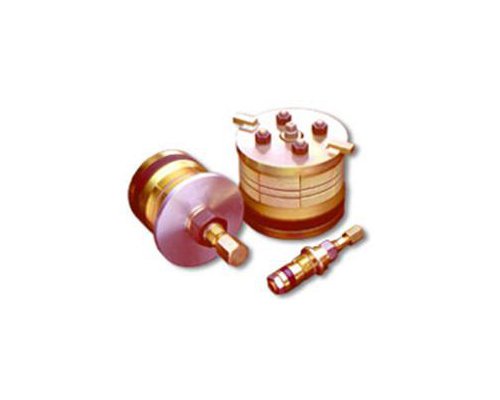

Force and water main, lift stations, nuclear cooling lines, fire protection lines, special plant situations, irrigation supply lines, and many other projects. Plugs pictured with optional high pressure caps.
