Duolok BSPT Male Connector - 1/2 Tube Fitting x 1/2 Male BSPT, 316 SS
Duolok BSPT Male Connector - 1/2 Tube Fitting x 1/2 Male BSPT, 316 SS
SKU:311-8e6e81
Precision Duolok BSPT Male Connector - 316 SS, 1/2 Tube Fitting x 1/2 Male BSPT for secure instrumentation connections.
Regular price
$23.18
Regular price
Sale price
$23.18
Unit price
per
Initiate Order
Duolok BSPT Male Connector - 1/2 Tube Fitting x 1/2 Male BSPT, 316 SS
$23.18
Quantity: 1
Claim Your Seller Account
Duolok BSPT Male Connector - 1/2 Tube Fitting x 1/2 Male BSPT, 316 SS
$23.18
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPT Male Connector features a 1/2 inch Tube Fitting connected to a 1/2 inch Male BSPT, made of high-quality 316 stainless steel. Designed for precision and durability, this straight connector ensures a secure and leak-free connection. With dimensions meeting industry standards, this connector is ideal for instrumentation applications requiring reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Pete's Plugs are well suited for most plant and pipeline systems including hot and chilled water systems, heat exchangers, pumps, differential readings, air, gas lines, and many other applications. The XL Pete's Plug will allow you to insulate the test point without adding extra fittings.
Installation Instructions Installation Instructions
Simply install a Pressure and Temperature Plug into 1/4" or 1/2" NPT fitting to receive either a 1/16" or 1/8" OD temperature and pressure probe.
Operating Instructions Operating Instructions

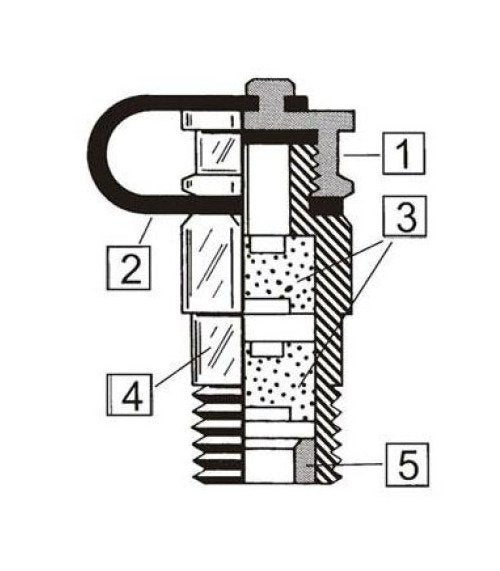

The cap protects the valve and provides an additional seal. After the cap has been removed, either a test thermometer or a gauge adapter with the proper pressure gauge can be inserted through the two, self-closing valves in the Pete's Plug II®. Readings are made, adjustments or test can be accomplished and when the probes are withdrawn, the two valves close. The protective cap is then reinstalled. Tests should be made as quickly as possible since the valve reseal time is dependent upon time of insertion, time, and pressure. Slower valve reseal time can be expected at lower temperature and lower pressures. Cap retaining straps are standard on all brass plugs.
Specifications Body And Cap Material
Brass
Specifications Length
1.5 in | 38 mm
Specifications Maximum Pressure And Temperature At 20 To 140 Deg
1000 psig
Specifications Maximum Pressure And Temperature At 32 To 275 Deg
500 psig
Specifications Probe Diameter
0.125 in
Specifications Shipping Weight
0.5 lb
Specifications Size In National Pipe Thread Npt
1/4 M
Specifications Strap Color And Body Material Code
Yellow
Specifications Valve Body Connection
1/4 in. MNPT - Brass | 3/8 in. MNPT - Brass | 1/2 in. MNPT - Brass
Specifications Valve Core Material
Nordel
Valve Material Valve Material
Neoprene is a chloroprene based synthetic rubber and is resistant to deterioration from waxes, fats, oils, greases, petroleum products, and most refrigerants. Nordel is an ethylene-propylene based synthetic rubber for hot and cold water, low steam, detergents, phosphate esters, ketone, alcohols, and glycols. It is not suitable for petroleum products. Neoprene and nordel are proprietary materials of others and assume no liability for results obtained or damages incurred through the application of this information. The information is intended simply as a guide.
