Duolok BSPT Male Connector - 316 SS, 18 mm x 3/4 in
Duolok BSPT Male Connector - 316 SS, 18 mm x 3/4 in
SKU:311-92d81e
High-quality Duolok BSPT Male Connector for secure and leak-free tubing connection. 316 SS, 18mm x 3/4in.
Regular price
$35.56
Regular price
Sale price
$35.56
Unit price
per
Initiate Order
Duolok BSPT Male Connector - 316 SS, 18 mm x 3/4 in
$35.56
Quantity: 1
Claim Your Seller Account
Duolok BSPT Male Connector - 316 SS, 18 mm x 3/4 in
$35.56
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPT Male Connector is a durable 316 SS tube fitting designed for Instrumentation Tube Fittings. This straight connector ensures a secure connection between 18 mm tubing and a 3/4 inch Male BSPT. With precise dimensions and high-quality construction, it guarantees leak-free performance and long-lasting reliability. Ideal for industrial applications where precision and durability are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Pete's Plugs are well suited for most plant and pipeline systems including hot and chilled water systems, heat exchangers, pumps, differential readings, air, gas lines, and many other applications. The XL Pete's Plug will allow you to insulate the test point without adding extra fittings.
Installation Instructions Installation Instructions
Simply install a Pressure and Temperature Plug into 1/4" or 1/2" NPT fitting to receive either a 1/16" or 1/8" OD temperature and pressure probe.
Operating Instructions Operating Instructions

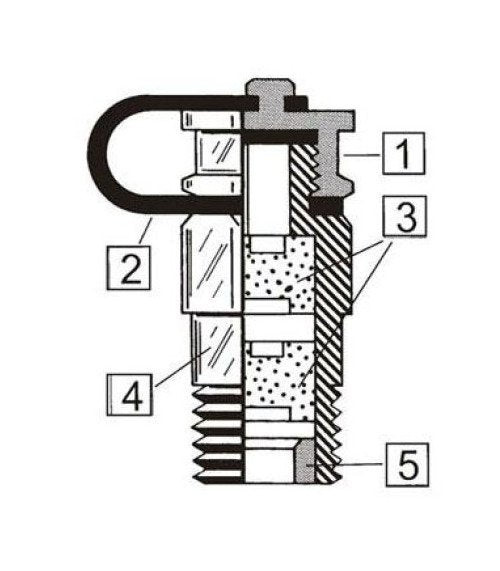

The cap protects the valve and provides an additional seal. After the cap has been removed, either a test thermometer or a gauge adapter with the proper pressure gauge can be inserted through the two, self-closing valves in the Pete's Plug II®. Readings are made, adjustments or test can be accomplished and when the probes are withdrawn, the two valves close. The protective cap is then reinstalled. Tests should be made as quickly as possible since the valve reseal time is dependent upon time of insertion, time, and pressure. Slower valve reseal time can be expected at lower temperature and lower pressures. Cap retaining straps are standard on all brass plugs.
Specifications Body And Cap Material
316 Stainless Steel (SS)
Specifications Length
1.5 in | 38 mm
Specifications Maximum Pressure And Temperature At 200 Degree Fa
500 psig
Specifications Probe Diameter
0.125 in
Specifications Shipping Weight
0.5 lb
Specifications Size In National Pipe Thread Npt
1/4 M
Specifications Strap Color And Body Material Code
Blue Strap and Two Grooves
Specifications Valve Body Connection
1/4 in. MNPT
Specifications Valve Core Material
Neoprene
Valve Material Valve Material
Neoprene is a chloroprene based synthetic rubber and is resistant to deterioration from waxes, fats, oils, greases, petroleum products, and most refrigerants. Nordel is an ethylene-propylene based synthetic rubber for hot and cold water, low steam, detergents, phosphate esters, ketone, alcohols, and glycols. It is not suitable for petroleum products. Neoprene and nordel are proprietary materials of others and assume no liability for results obtained or damages incurred through the application of this information. The information is intended simply as a guide.
