Duolok BSPT Male Connector - Brass, 1/2 Tube Fitting x 1/2 Male BSPT
Duolok BSPT Male Connector - Brass, 1/2 Tube Fitting x 1/2 Male BSPT
SKU:151-35b569
High-quality Duolok BSPT Male Connector in Brass for 1/2" Tube Fitting x 1/2" Male BSPT. Precision engineering for secure and leak-free connections.
Regular price
$9.94
Regular price
Sale price
$9.94
Unit price
per
Initiate Order
Duolok BSPT Male Connector - Brass, 1/2 Tube Fitting x 1/2 Male BSPT
$9.94
Quantity: 1
Claim Your Seller Account
Duolok BSPT Male Connector - Brass, 1/2 Tube Fitting x 1/2 Male BSPT
$9.94
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok BSPT Male Connector in Brass features a 1/2 inch Tube Fitting connecting seamlessly with a 1/2 inch Male BSPT. Crafted for precision, this straight connector ensures secure and leak-free connections, meeting stringent institutional procurement standards. The durable brass construction guarantees reliability and longevity, making it ideal for instrumentation applications in diverse industries.
Product Specifications
Additional Information Additional Information

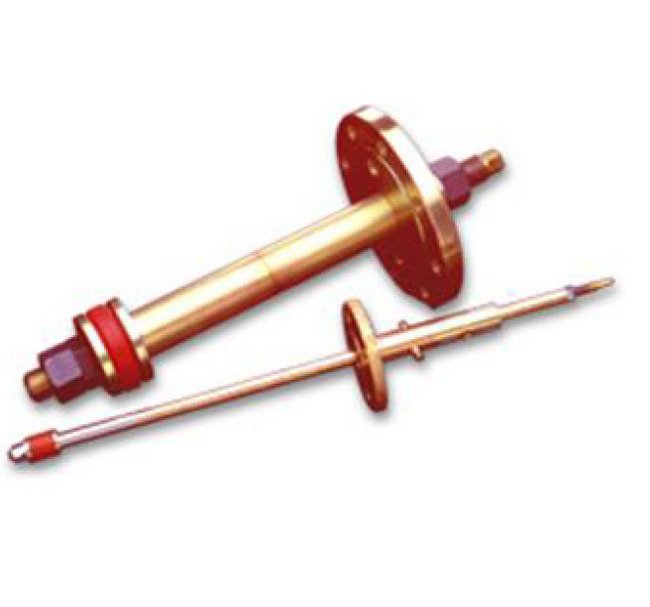

This plug will reduce the expense, downtime delays, and waste disposal problems associated with conventional flange-to-pipe weld testing. Our High Lift Flange Weld Test Plug lets you monitor downstream conditions, isolate and purge the weld area, perform the weld, and hydro test weld joint to ANSI B16.5 requirements using only one tool. No blind flanging upstream, no vacuum truck for evacuating the line, and no X-raying. Just a simple, rock-solid tool that saves time and money every time you use it. Each test requires a minimum amount of water and there's no need to fill the entire line. You'll use less water and minimize your environmental liabilities.
Features Features
Fast, easy installation, and testing.Segmented compression tube allows adjustment of seal installation depth.Faster pipe repairs and retrofits.Improved Seal-to-Pipe Clearance: Plug can be easily installed and removed, even where there is severe weld protrusion.Low water requirements resulting in less waste water.A minimum of 1.5:1 safety factor.Rugged, heavy-duty construction.Versatile: Seal and washer sets easily change to accommodate different pipe schedules.Ported Center Shaft: Permits monitoring of downstream pressure of inert gas rejection.Flange classes 150 - 600 lbs.Seal Materials: Urethane Standard.Flange style is Raised Face type.Test plugs do not include flange gaskets or nuts & bolts.
Mechanical Plug Warning Mechanical Plug Warning
Maximum head pressures that a pipe plug may hold back can only be estimated. Pressures are influenced by many factors including fluid and debris in the pipeline, type and condition of pipe, tightness of plug seal, and temperature. Plugs should always be inserted fully into pipeline and should be mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use a mechanical plug when its failure could cause injury.
Note Note
Seal-to-pipe clearance: approximately 1/2". Clearance may be slightly smaller on plugs that accommodate more than one schedule size. Replacement washers: required on all schedule sizes except for the smallest ID for each size pipe.External O-ring: included on 10" and 12" seals.Other flange class ratings and pipe schedules available upon request.Ordering information needed: flange size and rating, pipe ID or schedule, and test pressure.
Specifications Crowfoot Wrench Size For 1 14 To 2 Inch In Pipe S
15/16 in
Specifications Crowfoot Wrench Size For 34 To 1 Inch In Pipe Siz
9/16 in
Specifications Fill Port Size In National Pipe Thread Npt
1/8F
Specifications Flange Class
150 lb
Specifications Flange Size
1 in. DN25
Specifications Impact Socket Depth For 10 To 24 Pipe Size
1 5/8 in
Specifications Impact Socket Depth For 2 12 To 4 Pipe Size
2 in
Specifications Impact Socket Depth For 6 To 8 Pipe Size
3 1/8 in
Specifications L3
1.25 in | 31.8 mm
Specifications L4
24.6875 in | 627.1 mm
Specifications Maximum L2
14.25 in | 362 mm
Specifications Maximum Test Pressure
450 psi | 30.9 bar
Specifications Pipe Schedule
XXS
Specifications Plug Application L1 A Welding
12 in | 304.8 mm
Specifications Plug Application L1 B Test
3 in | 76.2 mm
Specifications Seal To Pipe Clearance
0.04 in | 1 mm
Specifications Shipping Weight
9 lb
Specifications Vent Port Size In National Pipe Thread Npt
1/8 F
