Duolok Bulkhead Union - Brass, 3/4 Tube x 3/4 AN, Duolok Series
Duolok Bulkhead Union - Brass, 3/4 Tube x 3/4 AN, Duolok Series
SKU:FIT-8249ee
High-quality Duolok Brass Bulkhead Union for secure instrument tube fittings. 3/4 Tube x 3/4 Male AN connection.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Duolok Bulkhead Union - Brass, 3/4 Tube x 3/4 AN, Duolok Series
$28.99
Quantity: 1
Claim Your Seller Account
Duolok Bulkhead Union - Brass, 3/4 Tube x 3/4 AN, Duolok Series
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Bulkhead Union in Brass features a 3/4 Tube Fitting x 3/4 Male AN connection, ideal for secure instrument tube fittings. Crafted with high-quality Brass, this straight-shaped union ensures durability and precision. With dimensions meeting industry standards and a threaded end for easy installation, it is a reliable choice for your instrumentation needs.

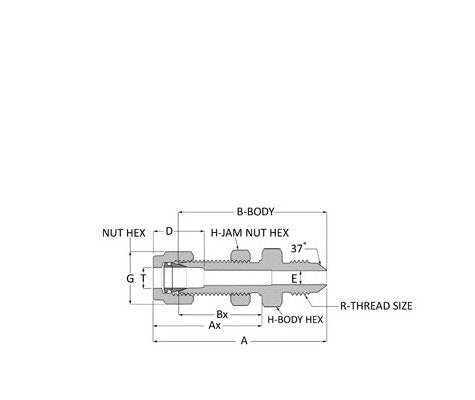

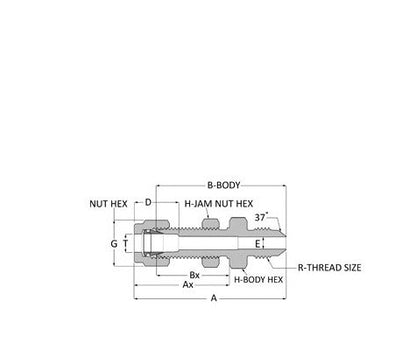

Product Specifications
Dimensions A
3.11 in
Dimensions An Tube Flare Size
3/4
Dimensions Ax
1.87 in
Dimensions B
2.71 in
Dimensions Bx
1.47 in
Dimensions D
0.96 in
Dimensions E
0.61 in
Dimensions G
1 1/8 in
Dimensions H
1 3/16 in
Dimensions Maximum Panel Thickness
0.66 in
Dimensions Panel Hole Drill Size
1 1/64 in
Dimensions R Thread Size
1 1/16-12 UNF-2
Dimensions T
3/4 in
Specifications Body Material
Brass
Specifications Brand Series
Duolok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to AN Fitting - Duolok
