Duolok Female Adapter - 10mm Tube Stub x 1/4in FNPT, 316 SS
Duolok Female Adapter - 10mm Tube Stub x 1/4in FNPT, 316 SS
SKU:MUN-d0834d
High-quality Duolok Female Adapter - 10mm Tube Stub x 1/4in FNPT, 316 SS for secure instrumentation connections.
Regular price
$14.39
Regular price
Sale price
$14.39
Unit price
per
Initiate Order
Duolok Female Adapter - 10mm Tube Stub x 1/4in FNPT, 316 SS
$14.39
Quantity: 1
Claim Your Seller Account
Duolok Female Adapter - 10mm Tube Stub x 1/4in FNPT, 316 SS
$14.39
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Female Adapter features a durable 316 SS construction, connecting 10mm Tube Stub to 1/4in FNPT seamlessly. With precise dimensions and a straight shape design, this adapter ensures a secure and leak-free connection. Ideal for instrumentation applications, it offers superior strength and corrosion resistance, meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

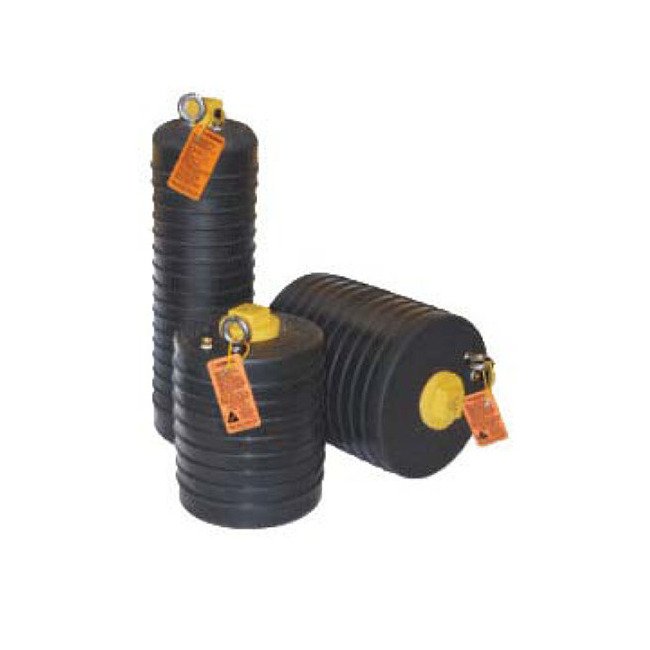

The Muni-Ball® Plug offers a full bypass allowing both testing and monitoring of the piping system. It is ideal for installation and repair of residential or commercial piping applications. Muni-Ball® products may be used for maintenance of municipal infrastructure, including sanitary and storm sewer pipe systems. They are durable, rugged and are effective on almost any type of pipe.
Inflatable Plug Warning 0

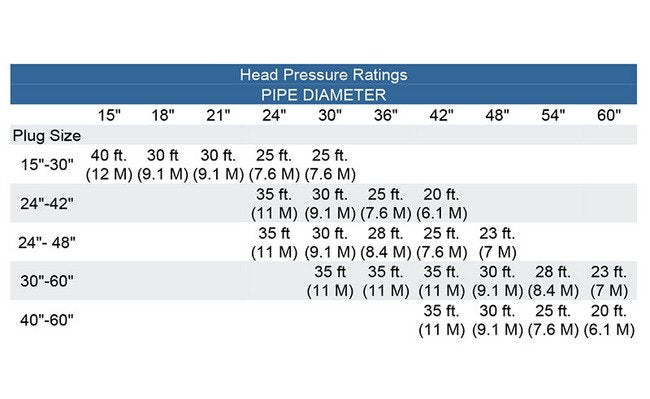

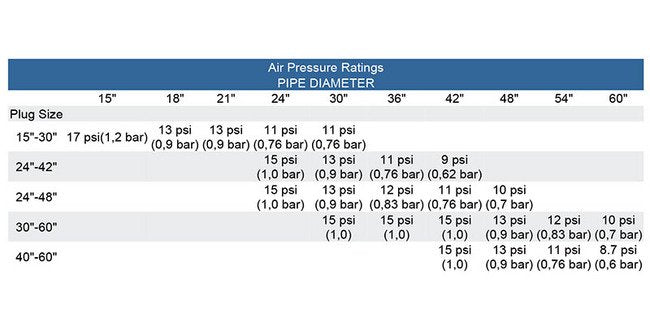

Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note 0
Female National Pipe Thread
Specifications By Pass Diameter
3 in FNP
Specifications Chain Eye Bolts
3/8 in (1)
Specifications Deflated Diameter
10.25 in | 260 mm
Specifications Deflated Length
13.75 in | 350 mm
Specifications Inflation Pressure
35 psi | 2.4 bar
Specifications Inflation Thread
1/4 in
Specifications Maximum Back Pressure
13 psi | 0.9 bar | 30 ft | 9.1 m
Specifications Nominal Size
12 in | 300 mm
Specifications Range Of Use
10.50 to 12.25 in | 267 to 311 mm
Specifications Shipping Weight
16 lb
