Duolok Female Adapter - 12 mm Tube Stub x 1/2 in FNPT
Duolok Female Adapter - 12 mm Tube Stub x 1/2 in FNPT
SKU:MUN-f4ca09
Premium Duolok Female Adapter - 12 mm Tube Stub x 1/2 in FNPT, 316 SS
Regular price
$28.50
Regular price
Sale price
$28.50
Unit price
per
Initiate Order
Duolok Female Adapter - 12 mm Tube Stub x 1/2 in FNPT
$28.50
Quantity: 1
Claim Your Seller Account
Duolok Female Adapter - 12 mm Tube Stub x 1/2 in FNPT
$28.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok Female Adapter is crafted from high-grade 316 SS, ensuring durability and corrosion resistance. Featuring a 12 mm Tube Stub connection on one end and a 1/2 in FNPT connection on the other, this straight adapter boasts precise dimensions for secure fittings. Ideal for instrumentation applications, it offers a reliable connection solution and complies with Federal/DoD procurement standards, ensuring quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

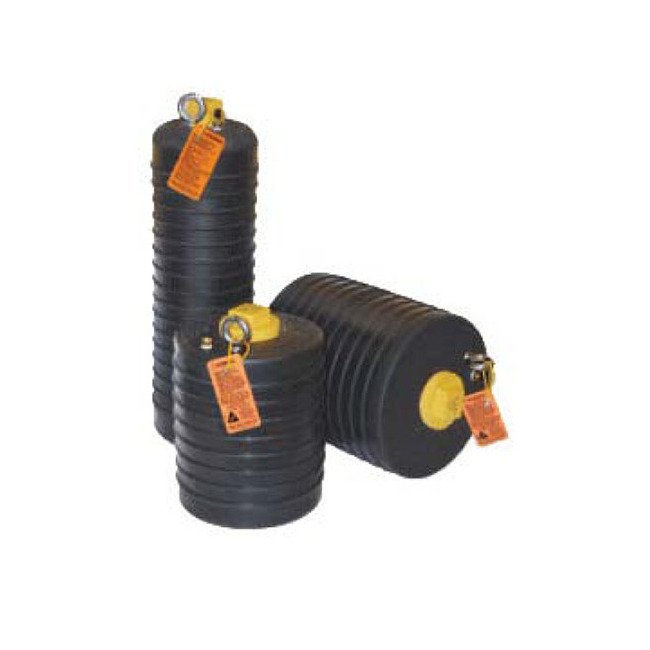

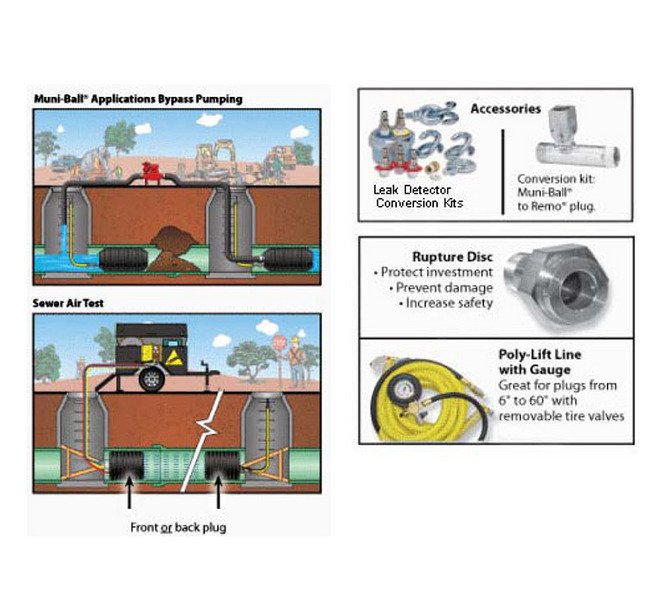

The Muni-Ball® Plug offers a full bypass allowing both testing and monitoring of the piping system. It is ideal for installation and repair of residential or commercial piping applications. Muni-Ball® products may be used for maintenance of municipal infrastructure, including sanitary and storm sewer pipe systems. They are durable, rugged and are effective on almost any type of pipe.
Inflatable Plug Warning 0
Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex⢠Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 1/2 to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working downstream.
Note 0
Female National Pipe Thread
Specifications By Pass Diameter
1/2 in FNP
Specifications Chain Eye Bolts
1/4 in (1)
Specifications Deflated Diameter
4.5 in | 112 mm
Specifications Deflated Length
7 in | 178 mm
Specifications Inflation Pressure
35 psi | 2.4 bar
Specifications Inflation Thread
1/8 in
Specifications Maximum Back Pressure
13 psi | 0.9 bar | 30 ft | 9.1 m
Specifications Nominal Size
6 in | 150 mm
Specifications Range Of Use
4.50 to 6.25 in | 144 to 159 mm
Specifications Shipping Weight
3 lb
